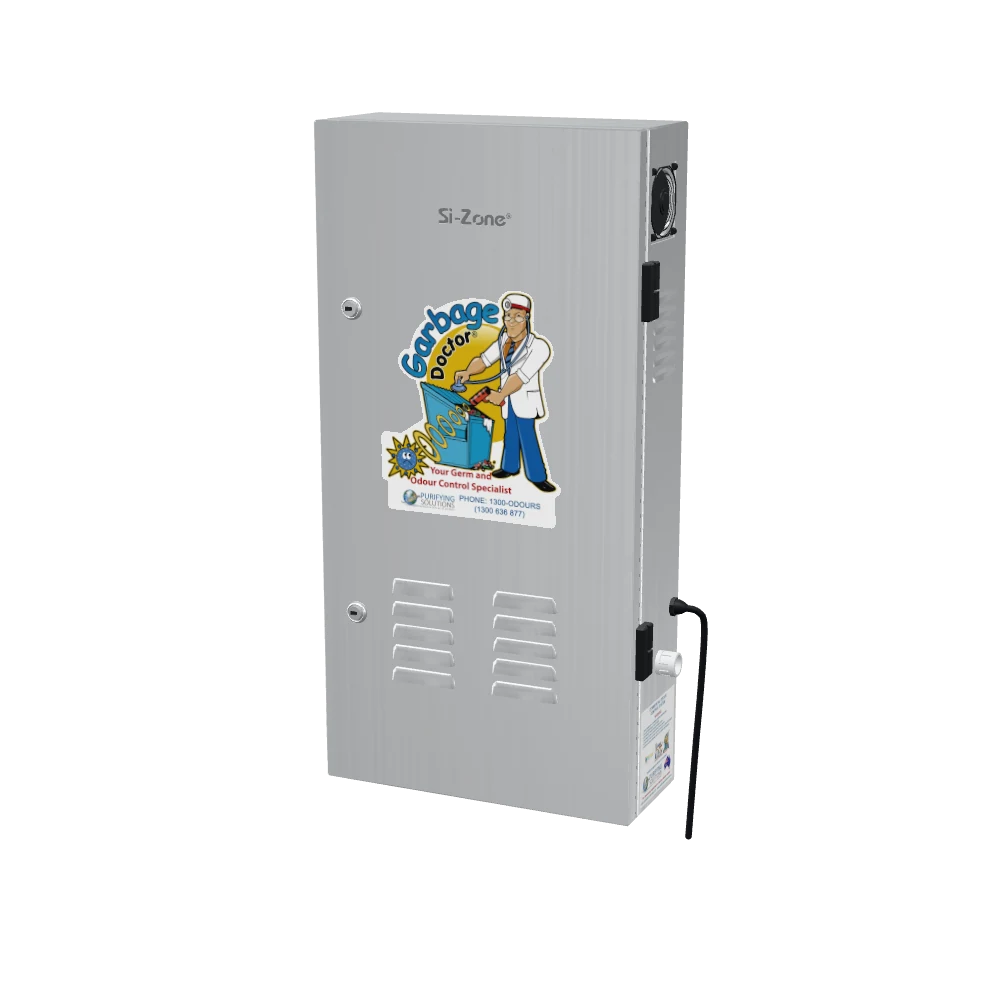

Garbage Doctor® 4000
Air Purifier for Garbage Rooms and Chutes
The Garbage Doctor® 4000 has been designed for treating garbage rooms and garbage chutes in small-medium sized apartment buildings. For larger buildings, we will use our Garbage Doctor® Ozone or Garbage Doctor® Duo systems if scenting is also required.
Being part of our ‘dual air purification’ product range, it combines two separated purifiers within a single piece of equipment.
The first air purifier is an ultraviolet Ozone generator, which is generally installed to deliver Ozone in a targeted way into the garbage chute, and garbage bins or compactor/carousel.
The second purifier uses a Germicidal UV-C light-wave which is deadly to forms of life at the micro-organic level (bacteria, viruses etc). Additionally a process called Photo Catalytic Oxidation is combined, which provides powerful treatment for foul air as it passes through the steriliser.
Proudly designed and built in Australia
Contact us online or phone 1300-ODOURS (1300 636 877) for a quotation or further information.

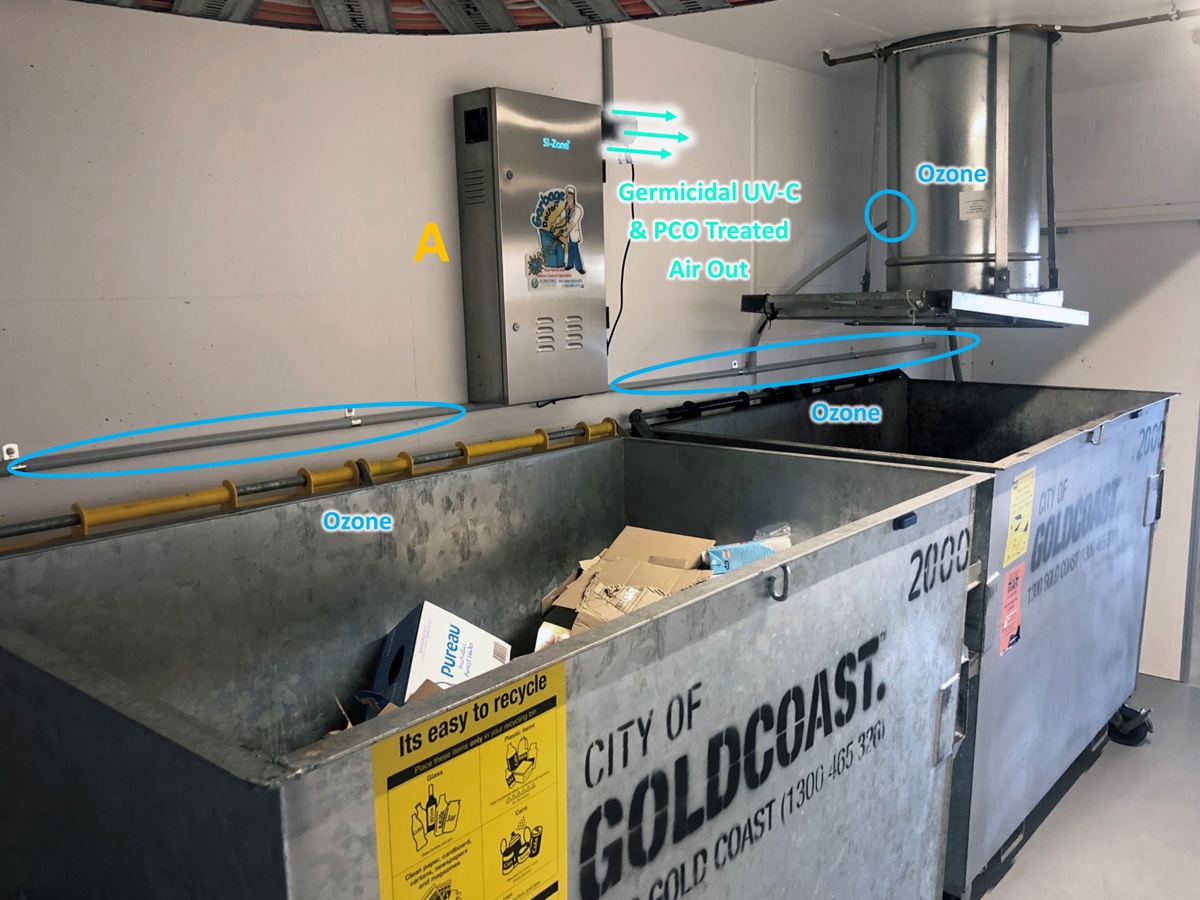

Installation Example - How Does it Work?
The Garbage Doctor® 4000 (‘A’) is made from stainless steel and is mounted on the wall of the bin room. This equipment is a dual air purification system. The bottom part of the cabinet includes an Ultraviolet Ozone generator with filtration. The upper part contains a separate chamber utilising Germicidal UV-C light and Photo-Catalytic Oxidation (PCO).
Air Purifier 1: Ozone (Targeted Germicidal and Odour Control)
In the above example, Ozone is dispersed from the cabinet via a grey PVC pipe, this pipe goes above the recycling and wet-waste bins, then into the garbage chute. There are small holes drilled in the pipework above the bins, which release Ozone just where it is needed. Targeting Ozone in this way – at the source of the odours and pathogens (in this case, the rubbish bins) provides a best-practice of odour neutralisation and germicidal control, before foul air is sucked up the chute. The amount of Ozone being created is completely adjustable, and is tailored to suit each individual site.
Ozone is a powerful deodorising and germicidal control agent, which has been proven effective against an enormous range of microorganisms (bacteria, viruses, etc). Ozone also physically destroys odours by a processed called oxidation (without masking). Our customers generally notice a difference within about 15 minutes of installation. Click here for more information on Ozone as an application for treating garbage systems.
Air Purifier 2: Germicidal UV-C and Photo Catalytic Oxidation
The upper portion of the Garbage Doctor® 4000 contains a separate internal air purifier to the Ozone system. Air within the bin room is exposed to a powerful Germicidal UV-C light. This light-wave is deadly to forms of life at the micro-organic level (i.e. bacteria, viruses etc). The ultraviolet light also activates a special internal coating within the purifier, that initiates a process called Photo Catalytic Oxidation (PCO). PCO creates a powerful oxidising agent which further helps to treat harmful microoganisms in the air and destroy odours.
Because there are limits to the amount of Ozone which can typically be used in occupied garbage rooms, this dual air purification configuration provides additional treatment than what is possible using Ozone (or a combination Ozone/Germicidal-UVC) system alone.
Garbage Doctor® 4000 - Other Installation Examples
Installation configurations will vary from site-to-site. The Garbage Doctor® equipment is well suited and has been installed on a large range of apartment building chutes, loading docks, grease traps and waste management systems, including: rubbish bins, carousel and compactors, from manufacturers such as: Elephants Foot, WasteTech, JJ Richards, Wanless, James Hardie, JD MacDonald etc.
The Garbage Doctor® 4ooo is available to purchase outright or on a fully inclusive rental throughout Sydney, Melbourne, Brisbane, Gold Coast, Sunshine Coast, Airlie Beach & Tweed.
Garbage Doctor® 4000 - Specifications
Number of Internal Air Purifiers | 2 |
Number of Air Purification Technologies | 3 + Filter |
Rated Operation Time | 24 Hours continuous |
UV Ozone Generator (With adjustable control) | Yes (Si-Zone®) |
Germicidal UV Steriliser (A separate UV steriliser that doesn’t use Ozone) | Yes (2nd Air purifier, without Ozone) |
Photo Catalytic Oxidation (PCO) | Yes (2nd Air purifier) |
Nitric Acid Free? (Nitric acid is corrosive to steel garbage chutes) | Yes (Guaranteed) |
Pre Filtration Method | Activated Carbon or 0.5 Micron Particle Filter |
Airflow Method | High Pressure System (31mm Food grade silicone or 25mm PVC) |
Construction Material | 304 Grade Stainless Steel |
Weight | 25KG |
Dimensions (mm) | 800 (H) x 400 (W) x 160 (D) |
Power Consumption | 100W-150W |
Operating Voltage | 230V 50HZ |
Warranty Period (All our equipment includes an on-site warranty) | 24 Months when purchased Indefinite period when leased |
Ozone Monitoring System | Optional |
Programmable Timer | Optional |
Remote Entry Access | Optional |
Applications | Garbage Odour Control (Garbage Rooms, Garbage Chutes, Garbage Compactors), Grease Trap Odour Control, Loading Dock Odour Control, other Commercial Odour Control Requiring Robust Equipment for 24/7 Operation. |
The Garbage Doctor® products are proudly designed and built in Australia.
