Garbage Doctor® Scenting
Garbage Chute Scenting / Commercial Scenting
The Garbage Doctor® Scenting equipment has been designed for customers with existing Ozone systems, who want to easily add scenting to freshen up their garbage chute, bin room or garbage compactor.
Typically the existing Ozone system is re-piped to provide additional odour neutralisation at the source of smell (usually the bins or compactor), and the scent is dispersed into the garbage chute. A small amount of the scent will typically escape around the chute opening on each level, greatly enhancing your residents and guests interaction with the buildings waste system. We have a selection of popular air freshening fragrances to choose from.
There is no question: when combined with Ozone in the bin room for odour neutralisation, scenting the garbage chute is a customer ‘favourite’ – and delivers exceptional results.
Although most commonly used in garbage chutes, this scenting system has a wide range of applications where a robust commercial fragrancing solution is needed.

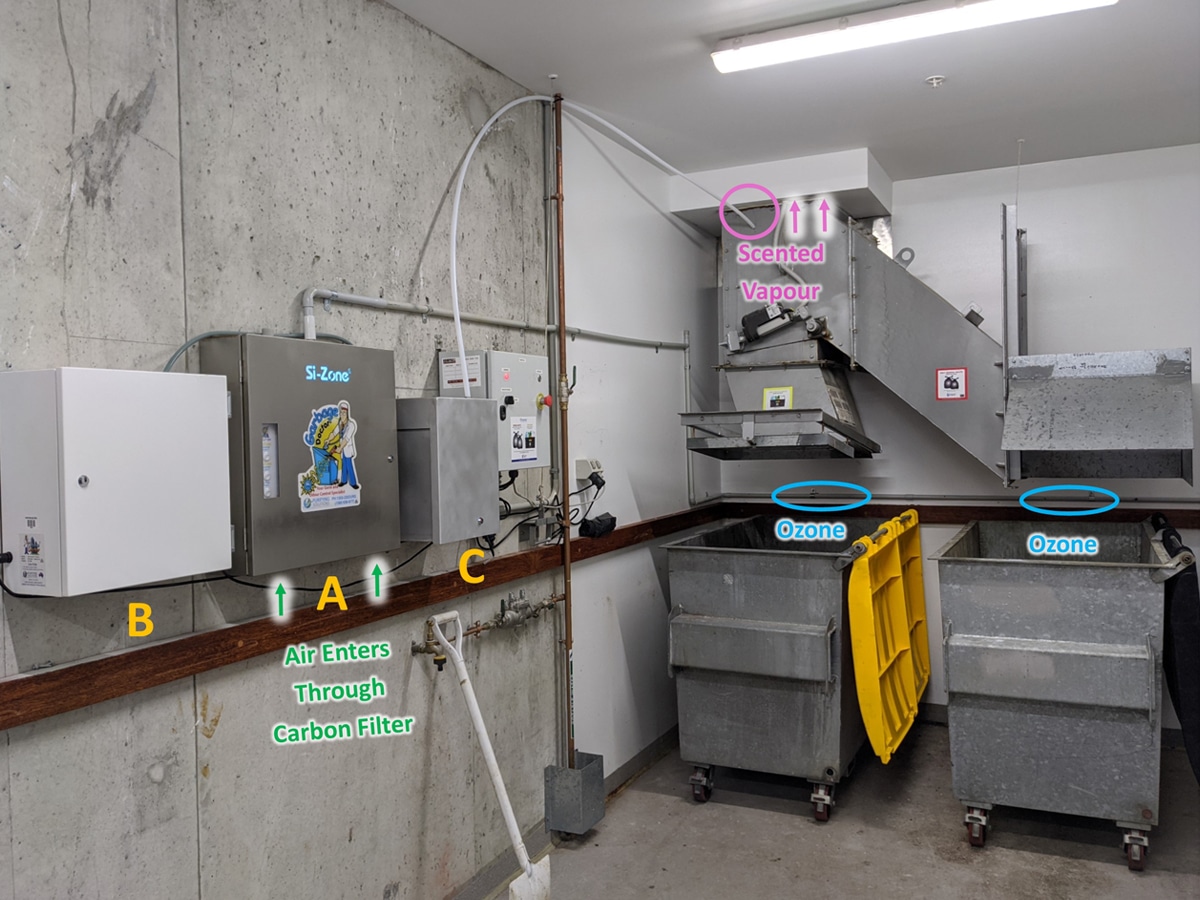

Installation Example - How Does it Work?

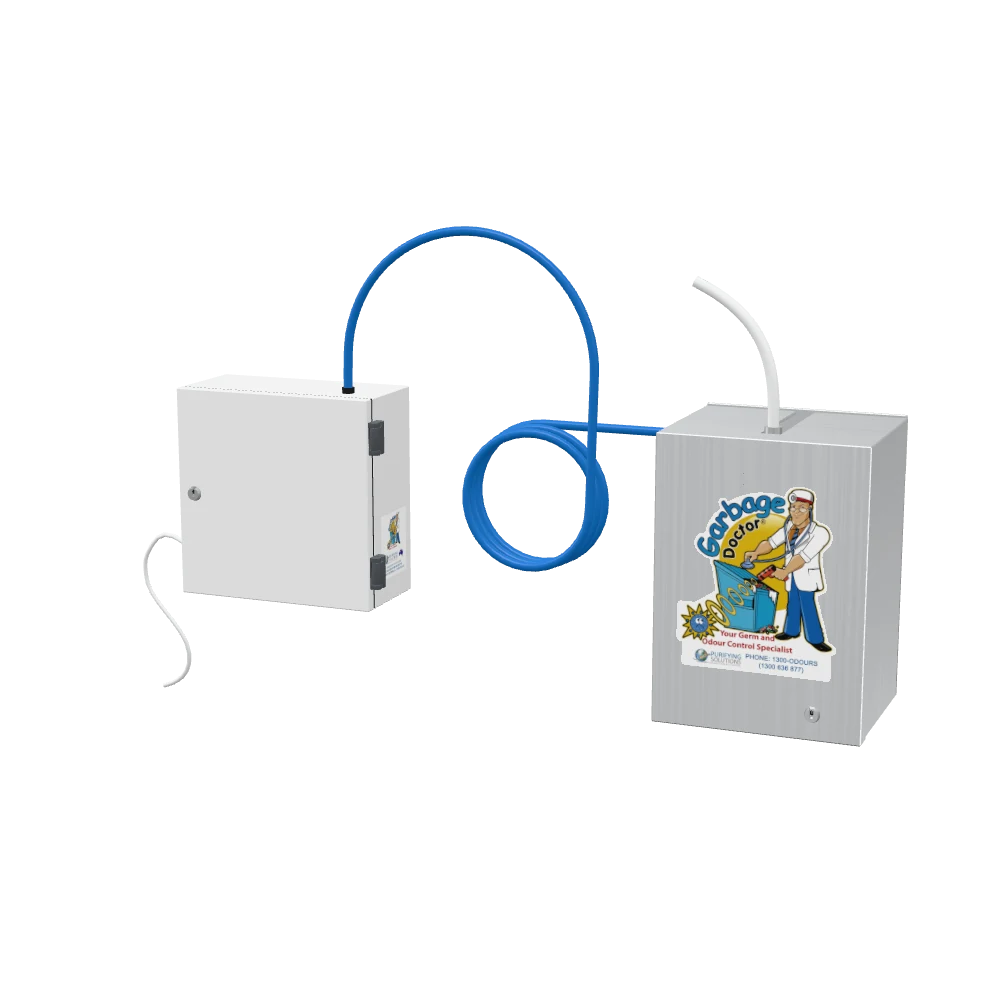

The Garbage Doctor® Scenting Control Box (‘B’) is wall mounted and connected to the Scent Tank (‘C‘). The customers original Garbage Doctor® 3000 (‘A‘) provides the Ozone/Germicidal UV-C/Carbon filtration equipment.
Scenting the Garbage Chute
In the above example, the Scent Control System (‘B’) is mounted on the wall and is connected to the Scent Tank (’C’). The Scent Tank disperses the fragranced vapour via a white pipe into the garbage chute. This fragrance will then travel up through the chute, with a small amount typically escaping around the chute openings on each level. The end result is a pleasant and clean smell as residents and guests interact with the buildings waste management system. Multiple air freshener fragrances are available to choose from, to find the right fit for your building.
Ozone (Targeted Germicidal and Odour Control)
The Garbage Doctor® 3000 (‘A’) is dispersing Ozone via the grey PVC pipework which runs against the wall behind the rubbish and recycling bins. This pipework has holes drilled in it, to disperse the Ozone in a targeted way above the bins.
By targeting the Ozone at the source of the odours, a best practice is achieved of neutralising odours and providing germicidal control before the air is sucked up the chute. The output of the Ozone is completely adjustable in all of our models, to suit each individual site.
Ozone is a powerful deodoriser and germicidal control agent, which is proven effective against an enormous range of microorganisms (bacteria, viruses, etc). Ozone works by physically destroying the odour molecule by a process called oxidation (without masking). Our customers generally notice a difference within about 15 minutes of installation. Click here for more information on Ozone as an application for treating garbage systems.

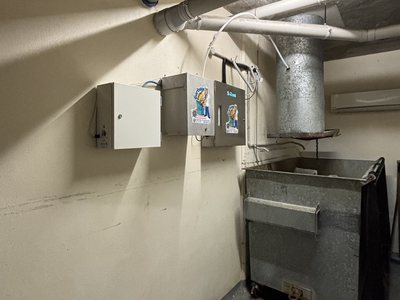

Garbage Doctor® Scenting - Further Installation Examples
Installation configurations will vary from site-to-site. The Garbage Doctor® equipment is well suited and has been installed on a large range of chutes, loading docks and waste management systems in hotels and apartments buildings, including: rubbish bins, carousel and compactors, from manufacturers such as: Elephants Foot, WasteTech, JJ Richards, Wanless, James Hardie, JD MacDonald etc.
The Garbage Doctor® Scenting equipment is available on a fully inclusive rental throughout Sydney, Melbourne, Brisbane, Gold Coast, Sunshine Coast, Airlie Beach & Tweed.
Garbage Doctor® Scenting - Specifications
|Number of Separate Air Purifiers||1|
|Air Purification Technologies||Scented Vapour|
|Rated Operation Time||24 Hours Continuous|
|Scenting?||Yes. External high capacity scent tank. Multiple scents to select from.|
|Operating Noise||Near silent|
|Pre Filtration Method||Fine Particle Filter|
|Airflow Method||16mm Hose from scent tank.|
12mm Hose between control unit and tank.
|Construction Material||Control Unit: Powder Coated Aluminium|
Scent Tank: Aluminium
|Weight||Control Unit: 7 KG|
Scent Tank: 6 KG
|Dimensions (mm)||Control Unit: 330 (H) x 330 (W) x 150 (D)|
Scent Tank: 420 (H) x 320 (W) x 250 (D)
|Power Consumption||35W – 70W|
|Operating Voltage||230V 50HZ|
(All our equipment includes an on-site warranty)
|Indefinite period when leased/rented|
|Applications||Garbage Odour Control (Garbage Rooms, Garbage Chutes, Garbage Compactors), Grease Trap Odour Control, Loading Dock Odour Control, other Commercial Odour Control Requiring Robust Scenting Equipment for 24/7 Operation.|
The Garbage Doctor® products are proudly designed and built in Australia.
