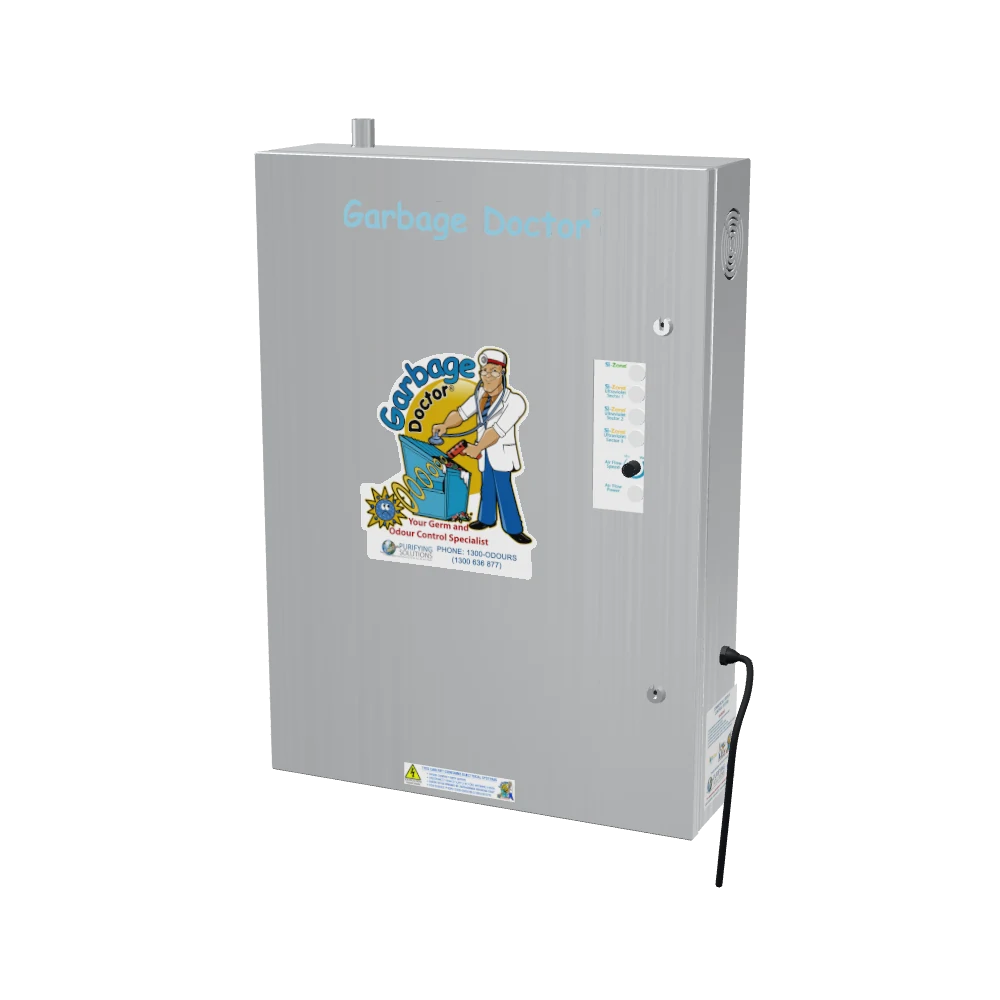

Garbage Doctor® Si-Zone 5000
Garbage Odour Control System
The Garbage Doctor® Si-Zone 5000 has been designed for treating garbage rooms and garbage chutes in medium-large sized apartment buildings and similar commercial applications. Being part of our ‘dual air purification’ product range, it combines two separated purifiers within a single piece of equipment, for advanced germ and odour control.
The first air purifier is a high capacity ultraviolet Ozone generator, which is generally installed to deliver Ozone in a targeted way into the garbage chute, and garbage bins or compactor/carousel. Because of the high fan pressure in this model, it is capable of delivering Ozone over long lengths of pipework.
The second purifier uses a germicidal UV-C light-wave which is deadly to forms of life at the micro-organic level (bacteria, viruses etc), together with a process called Photo Catalytic Oxidation, which provides powerful germicidal treatment and further odour control.

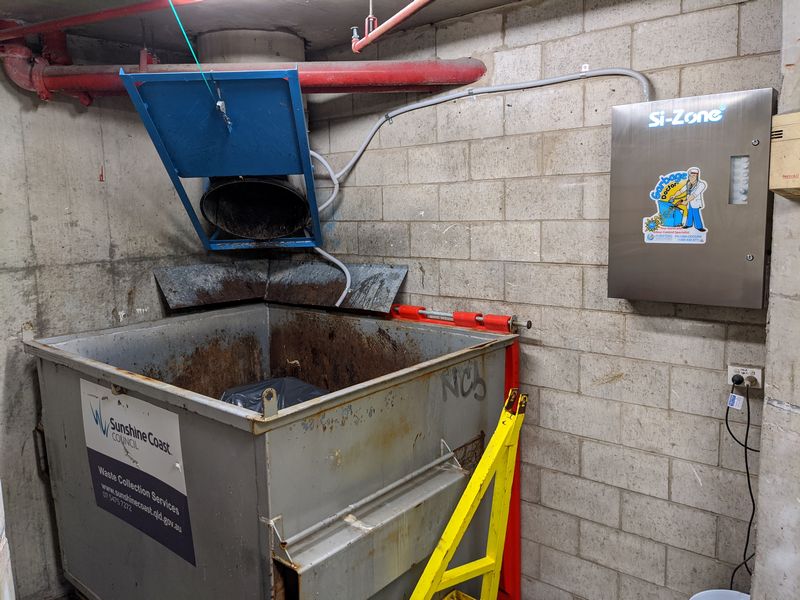

Installation Example - How Does it Work?

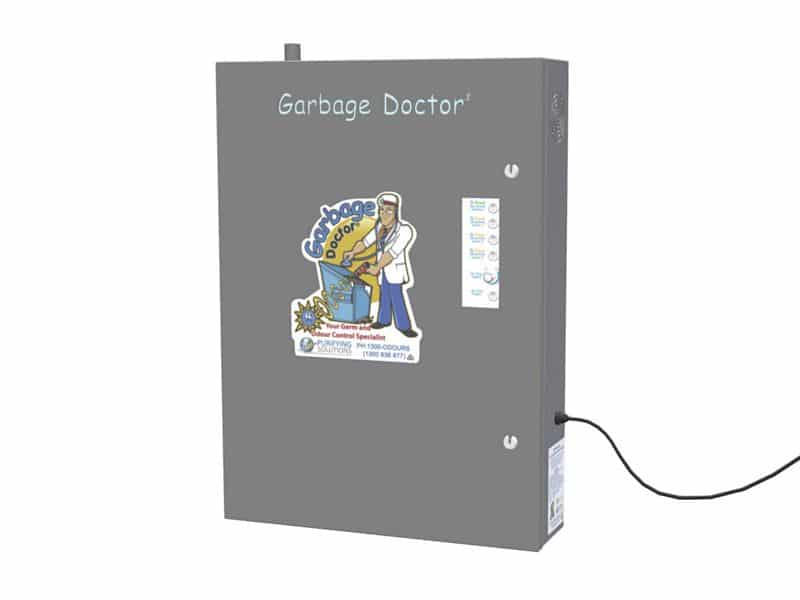

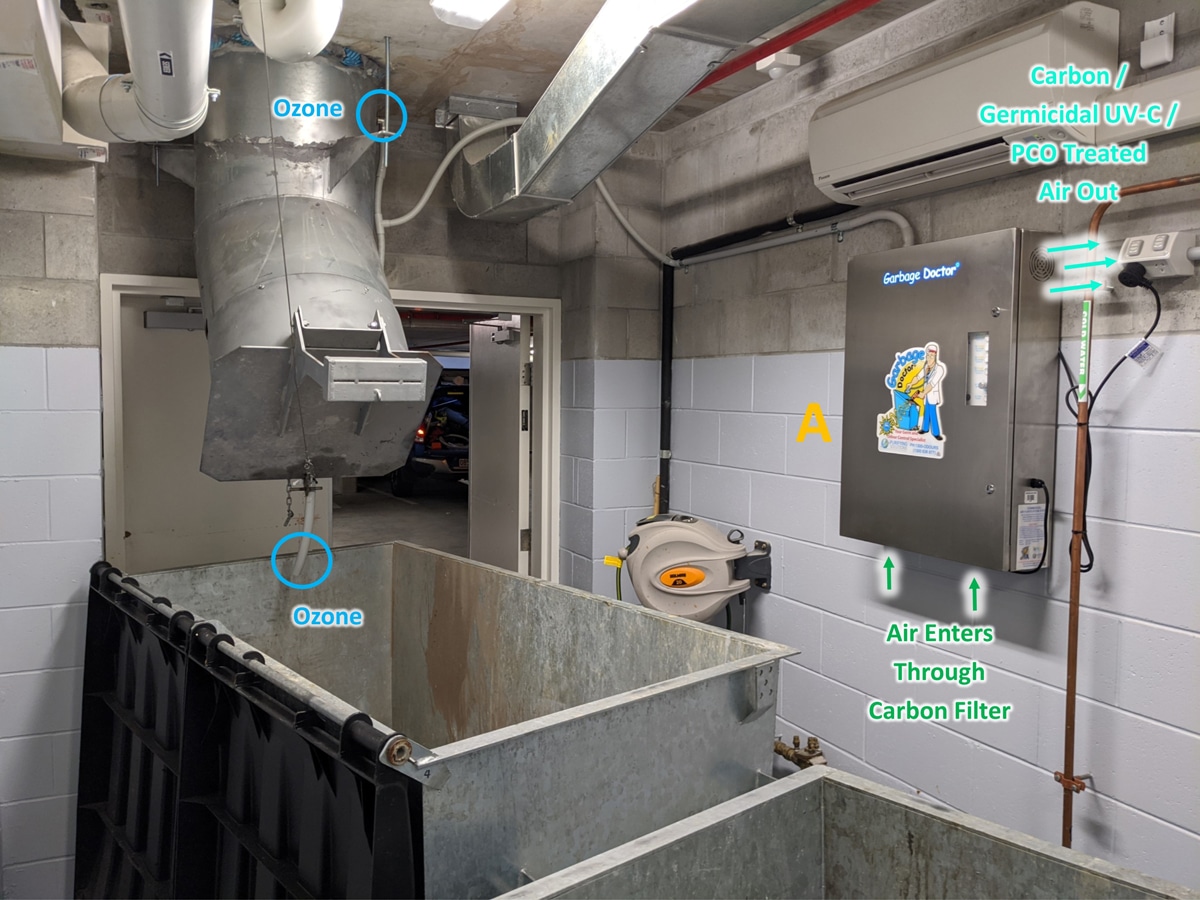

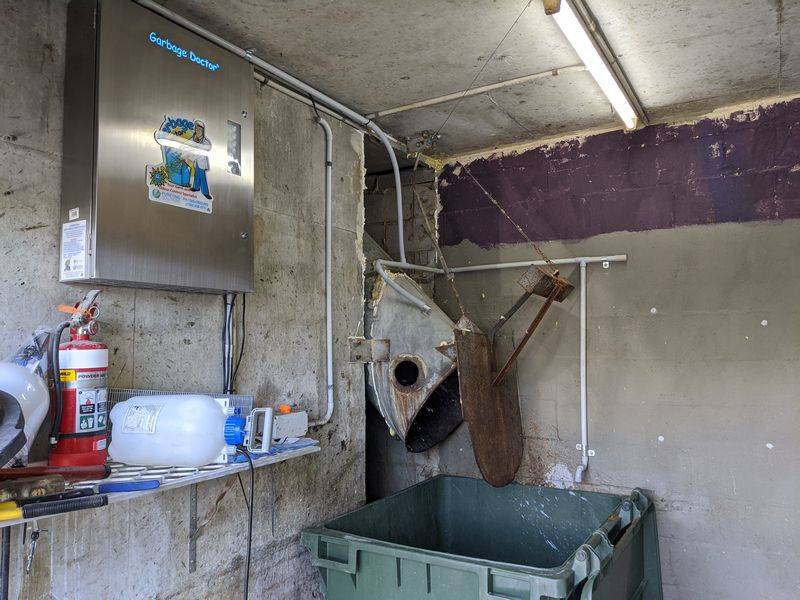

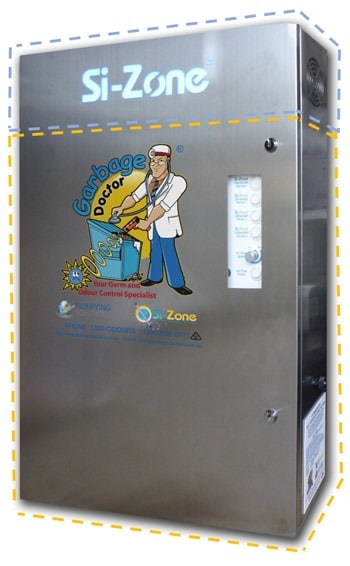

The Garbage Doctor® Si-Zone 5000 (‘A’) equipment is made from stainless steel and is mounted on the wall of the bin room. This equipment is a dual air purification system. The bottom part of the cabinet includes an Ultraviolet Ozone generator and Carbon Filtration. The top portion of the equipment contains a separate chamber utilising Germicidal UV-C light, and a process called Photo-catalytic Oxidation (PCO).
Air Purifier 1: Ozone (Targeted Germicidal and Odour Control)
In the above example, Ozone is dispersed from the cabinet via a grey PVC pipe, this pipe goes into the garbage chute and into the garbage bin beneath the chute via a flexible silicone hose. In larger rooms, we would also run pipework to any stored bins close by. Targeting Ozone at the source of the odours and pathogens (in this case, the rubbish bins) provides a best-practice of germicidal and odour control – before foul air is sucked up the garbage chute. The amount of Ozone being created is completely adjustable, and is tailored to suit each individual site.
Ozone is a powerful deodorising and germicidal control agent, which has been proven effective against an enormous range of microorganisms (bacteria, viruses, etc). Ozone also physically destroys odours by a processed called oxidation (without masking). Our customers generally notice a difference within about 15 minutes of installation. Click here for more information on Ozone as an application for treating garbage systems.
Air Purifier 2: Germicidal UV-C and Photo Catalytic Oxidation
The upper portion of the Garbage Doctor® Si-Zone 5000 contains a separate internal air purifier to the Ozone system. Air within the bin room is exposed to a powerful Germicidal UV-C light. This light-wave is deadly to forms of life at the micro-organic level (i.e. bacteria, viruses etc). The ultraviolet light also activates a special internal coating within the purifier, that initiates a process called Photo Catalytic Oxidation (PCO). PCO creates a powerful oxidising agent which further helps to treat harmful microoganisms in the air and destroy odours.
Because there are limits to the amount of Ozone which can typically be used in occupied garbage rooms, this dual air purification configuration provides additional treatment than what is possible using Ozone (or a combination Ozone/Germicidal-UVC) system alone.

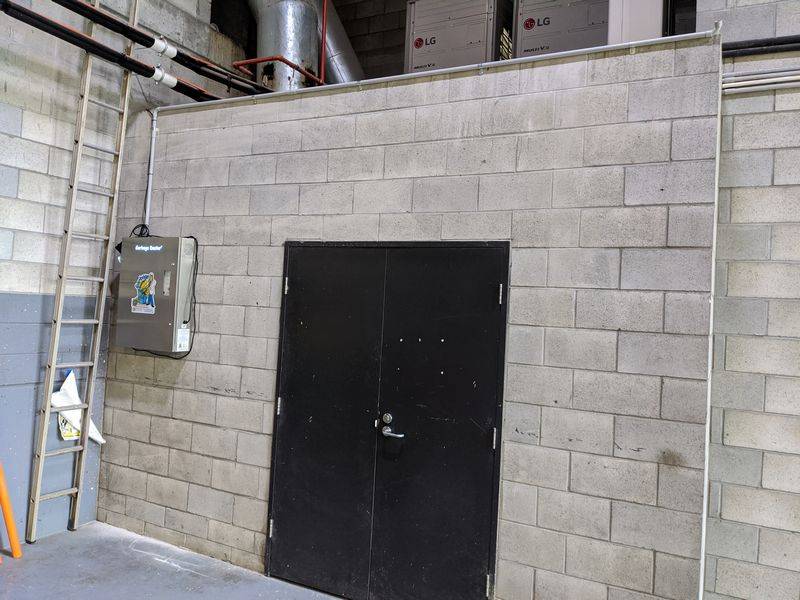

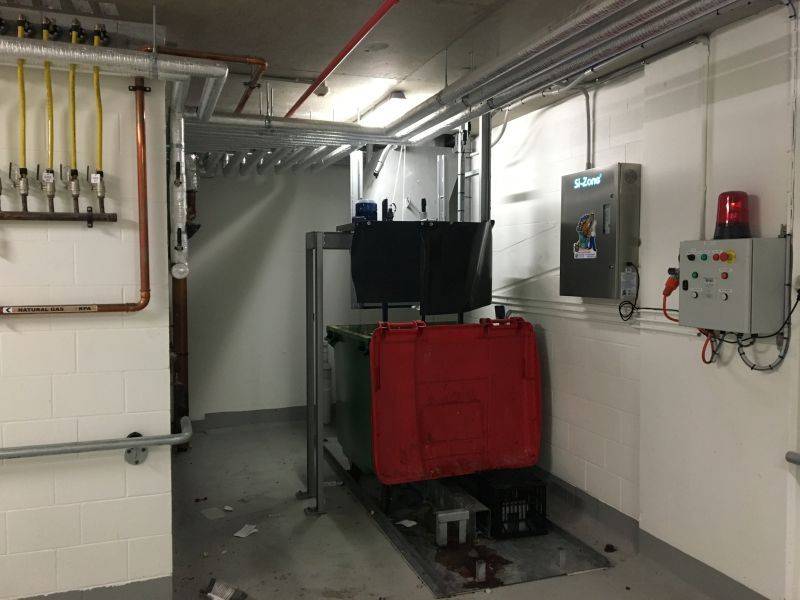

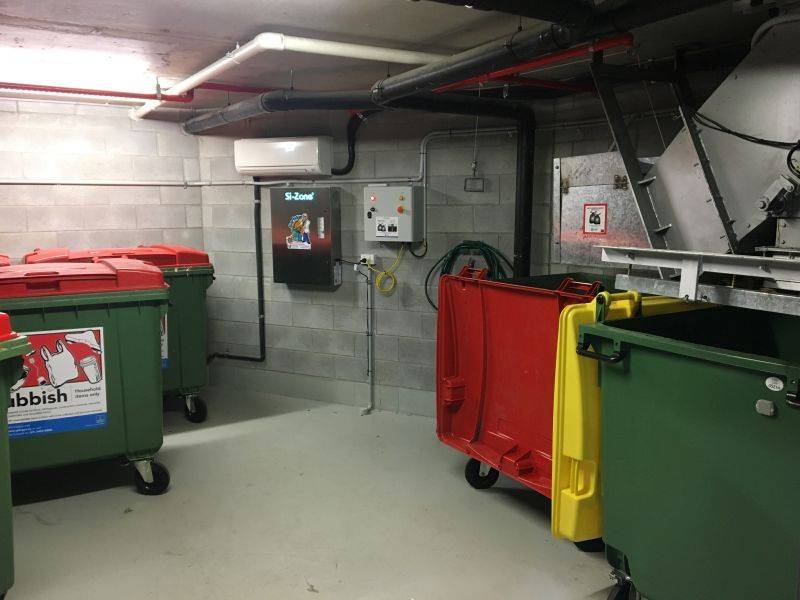

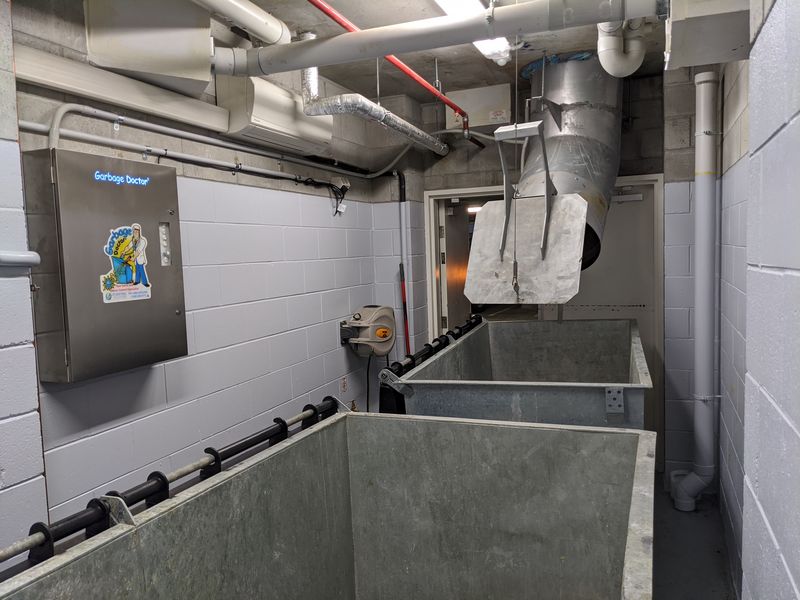

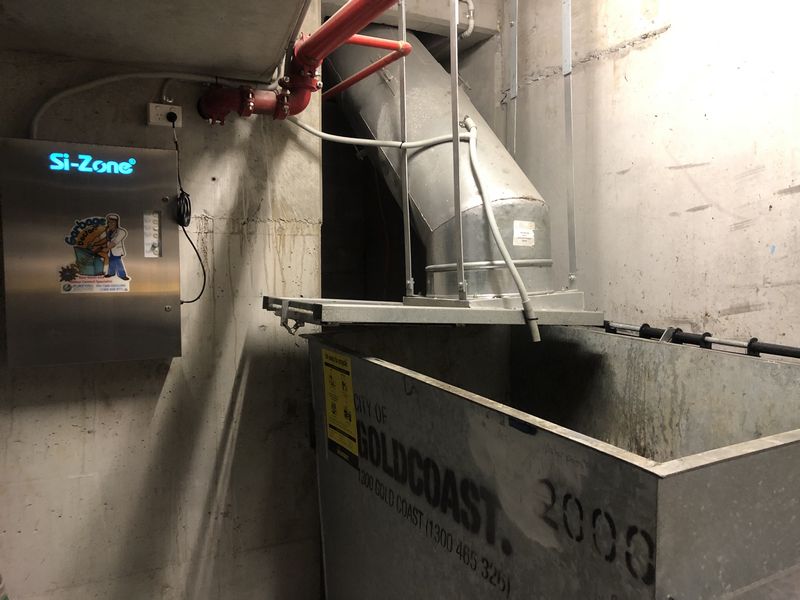

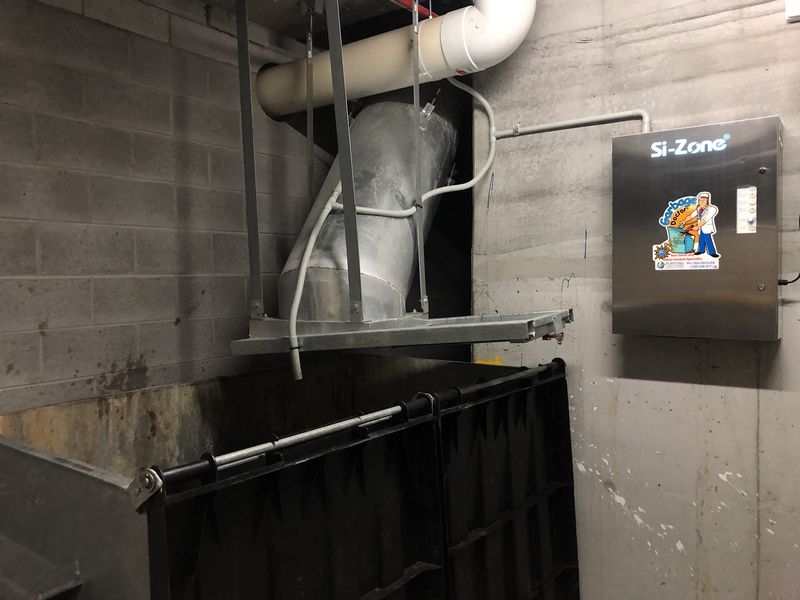

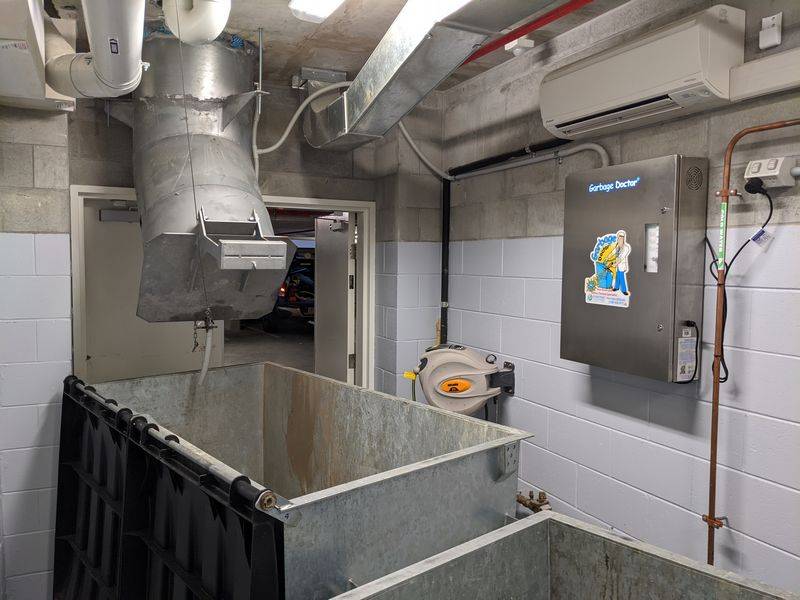

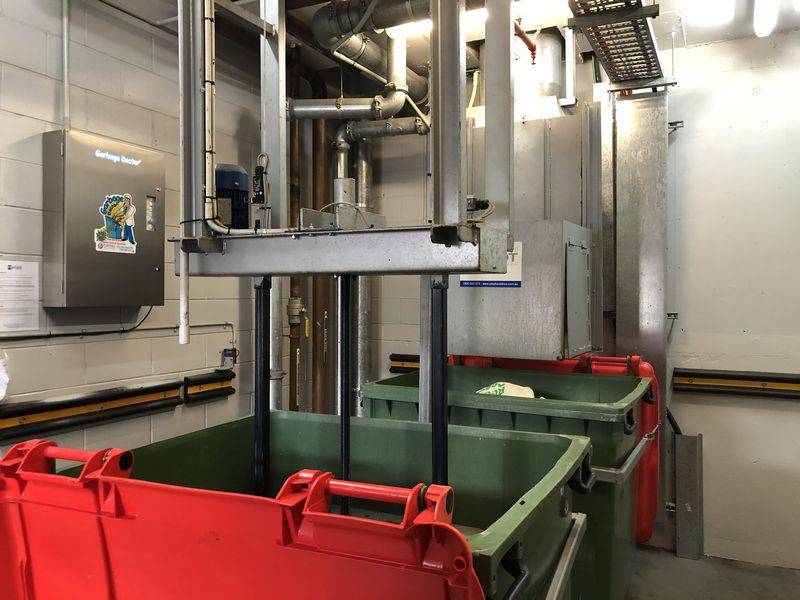

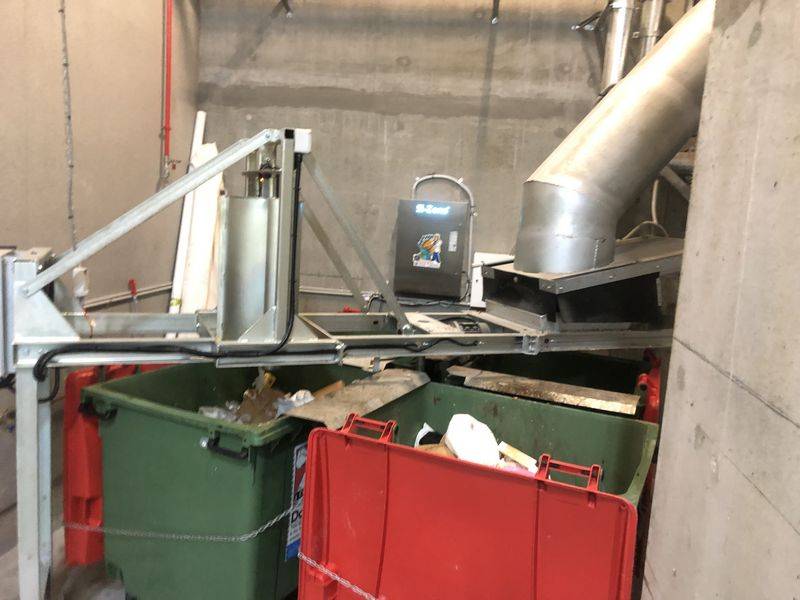

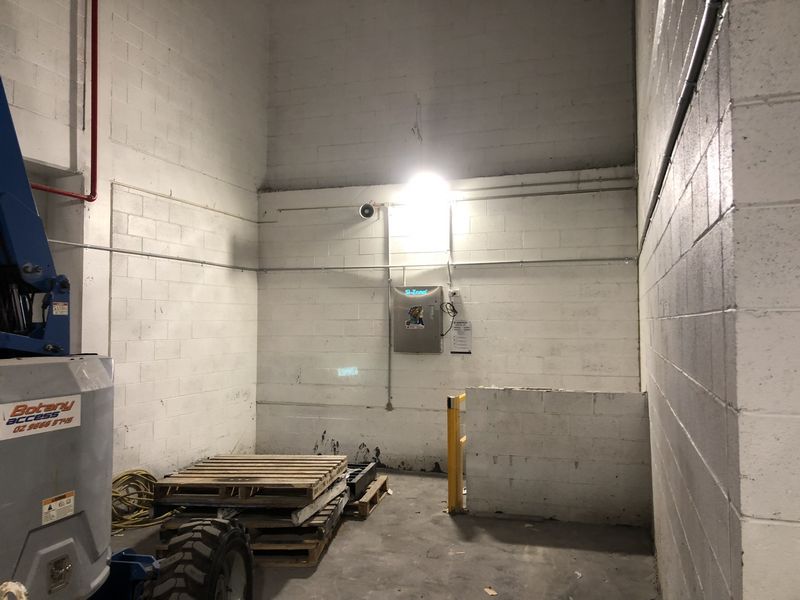

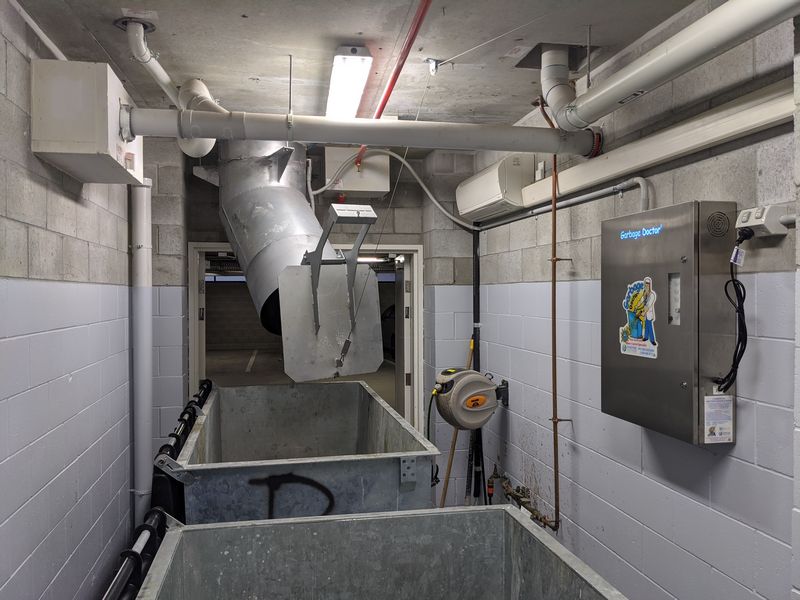

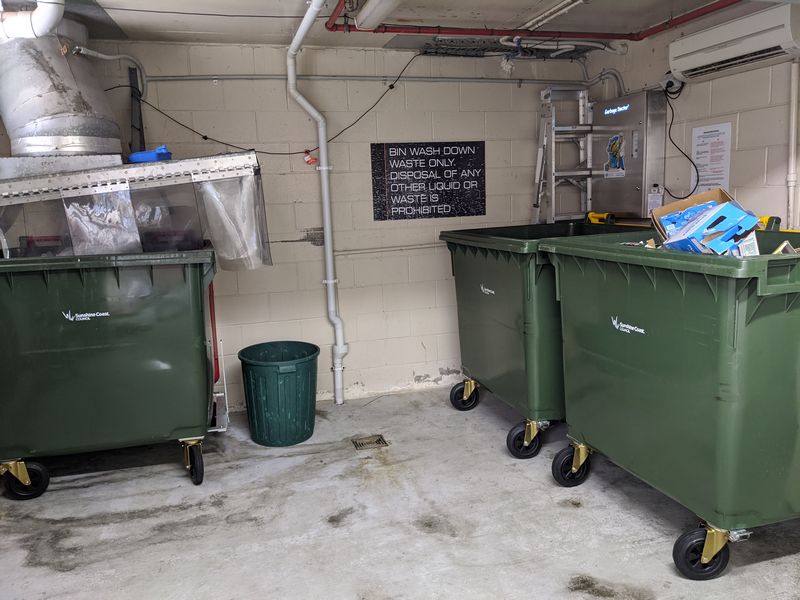

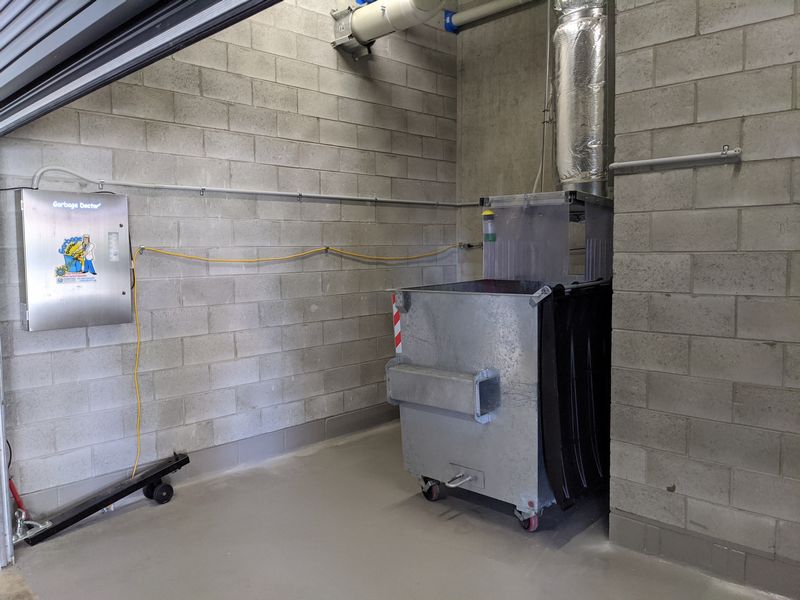

Garbage Doctor® Si-Zone 5000 - Other Installation Examples

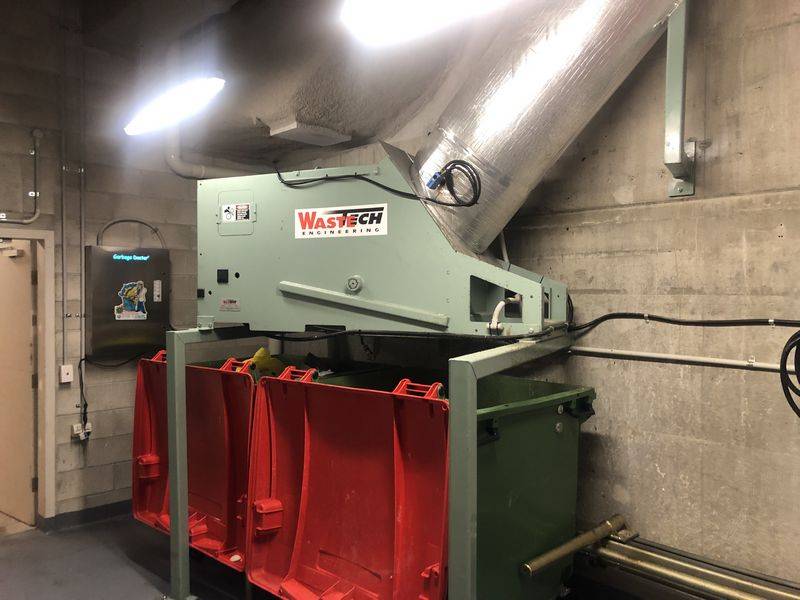

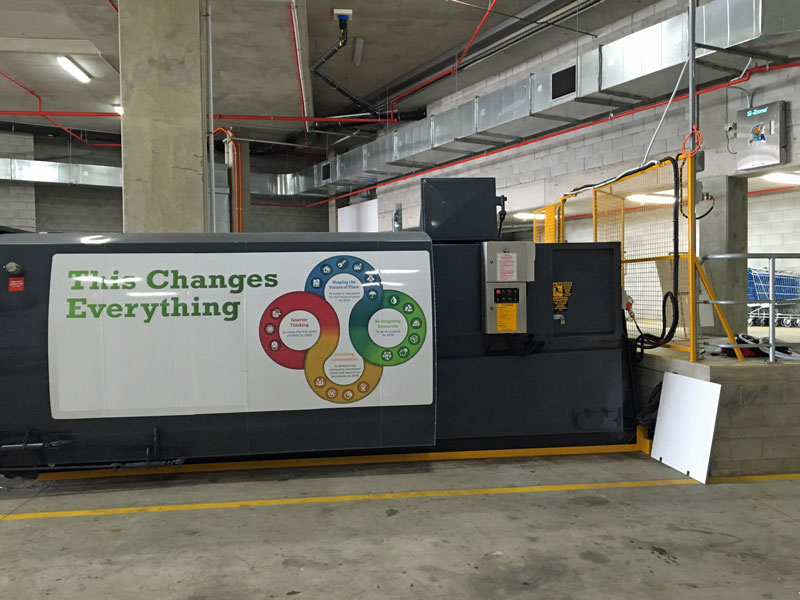

Installation configurations will vary from site-to-site. The Garbage Doctor® equipment is well suited and has been installed on a large range of apartment and high-rise garbage chutes, loading docks, grease traps and waste management systems, including: rubbish bins, carousel and compactors, from manufacturers such as: Elephants Foot, WasteTech, JJ Richards, Wanless, James Hardie, JD MacDonald etc.
The Garbage Doctor® Si-Zone 5ooo is available to purchase outright or on a fully inclusive rental throughout Sydney, Melbourne, Brisbane, Gold Coast, Sunshine Coast, Airlie Beach & Tweed.
Garbage Doctor® Si-Zone 5000 - Specifications
|Number of Separate Internal Air Purifiers||2
(Individual chambers: with Ozone lamps separate from second purifier)

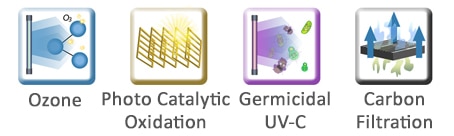

|Number of Air Purification Technologies||3
VUV Ozone, UVC Germicidal Light, Photo Catalytic Oxidation, + Carbon Filter
|Rated Operation Time||24 Hours continuous|
|UV Ozone Generator |
(With adjustable control)
(In separate air purifier)
|Photo Catalytic Oxidation (PCO)||Yes
(In separate air purifier)
|Nitric Acid Free?|
(Nitric acid is corrosive to steel garbage chutes)
|Operating Noise||Very quiet|
|Pre Filtration Method||Activated Carbon Particle Filter|
|Airflow Method||High Flow 31mm silicone hose (food grade) or PVC piping.|
|Construction Material||304 Grade Stainless Steel (Precision Laser Cut)|
|Dimensions (mm)||760 (H) x 560 (W) x 150 (D)|
|Power Consumption||70W – 160W|
|Operating Voltage||230V 50HZ|
(All our equipment includes an on-site warranty)
|48 Months when purchased
Indefinite period when leased
|Ozone Monitoring System||Optional|
|Remote Entry Access||Optional|
|Applications||Garbage Odour Control (Garbage Rooms, Garbage Chutes, Garbage Compactors), Grease Trap Odour Control, Loading Dock Odour Control, other Commercial Odour Control Requiring Robust Equipment for 24/7 Operation.|
The Garbage Doctor® products are proudly designed and built in Australia.
