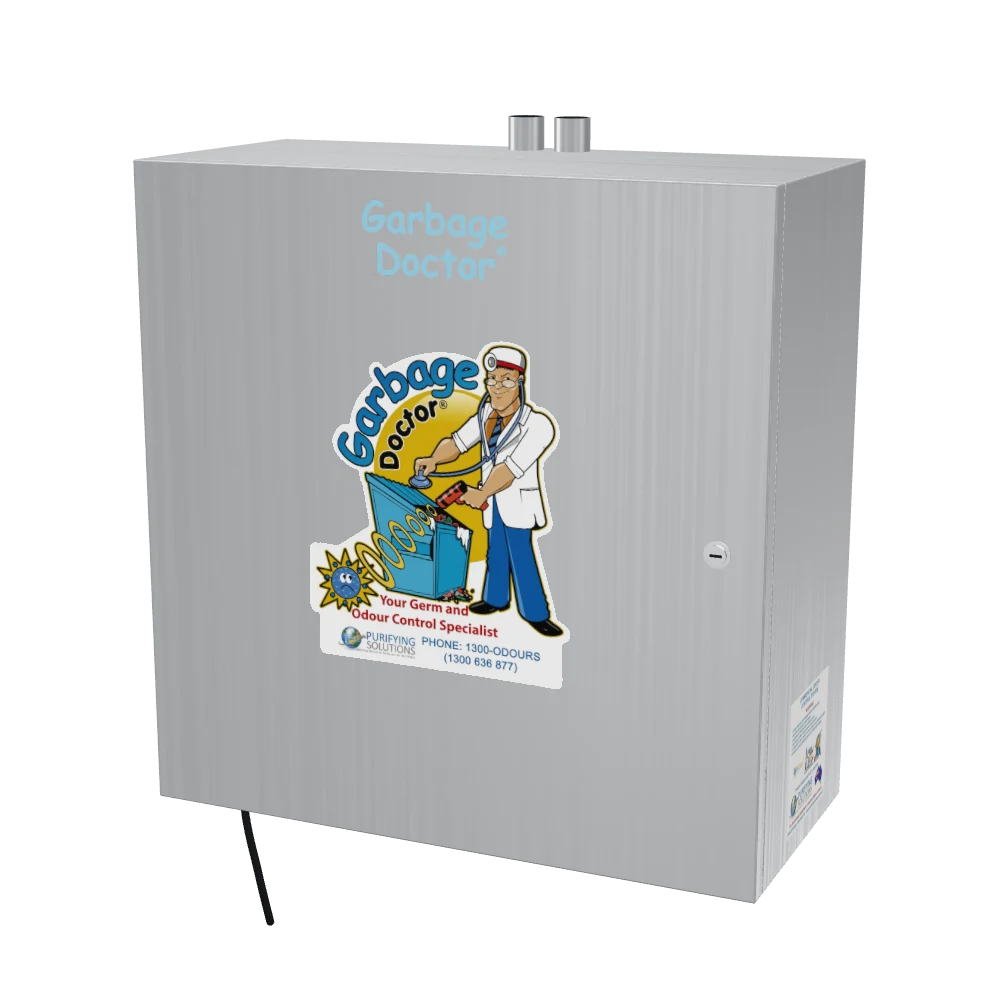

Garbage Doctor® Ozone HD
Our highest-output ozone generator, built in Australia to deodorise garbage odours in the largest garbage chutes, bin rooms, compactor rooms and loading docks.
See the difference in your own building first, with a free 2-week trial
In our regular service areas.
For the largest chutes and bin rooms
The Ozone HD is designed for sites where high output or long runs of conduit are essential: garbage chutes of 50 to 100 levels, large bin rooms and compactor rooms, dispersing into exhaust ductwork, and sites with several areas to treat that are far enough apart to need two ozone generators. The HD carries the ozone over the distance, so one machine treats them all.
As with every Garbage Doctor®, the ozone is targeted at the source: the bins, the compactor and the chute, so the air is treated before rising through the building.
How the Garbage Doctor Ozone works: UV ozone travels through conduit to the bins and into the garbage chute, so the odour is neutralised before rising.
- 304 stainless steelBuilt for wet, dirty bin rooms, with a lockable cabinet.
- Runs 24/7/365The UV ozone system is rated for continuous operation.
- High output, long reachCarries ozone through long runs of conduit, up to about 30 m from the machine.
- Two airflow settingsLow, for a smaller space, and high, for the largest.
- Results you notice fastCustomers generally notice a difference within about 15 minutes of installation.
- Made in AustraliaDesigned, built, installed and serviced by our team.
How the Garbage Doctor® makes ozone
- Air enters through a carbon filter along the bottom of the machine.
- The air passes UV lamps, which turn a small amount of the air's oxygen into ozone.
- The ozone leaves through the outlets on top and travels through PVC conduit to the bins and the chute.
- When the ozone meets the odour, the ozone breaks the odour down and turns back into oxygen.
Switch lamps on and off to see how the output changes. Blue lamps are full strength. Green lamps are half strength.
Installed and serviced by our licensed technicians

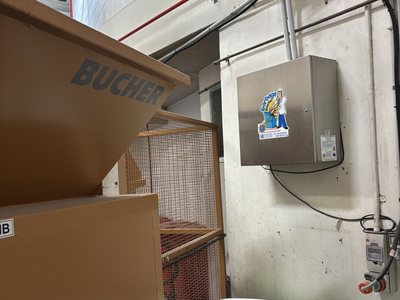

The Ozone HD mounts on the wall, and our technicians run PVC conduit or 38 mm food-grade silicone hose from the machine to each odour source, with small holes drilled wherever ozone is needed, then set the machine's output and airflow for your site. The Ozone HD is an industrial-grade machine, used on garbage chutes, loading docks, grease arrestors and waste systems of every kind.
We'll plan the installation for your building
You are welcome to send us photos or a video of your bin room and chute, or we can meet you on site, whichever suits you best. We'll recommend the right model and send you a quote, and our technicians install and set up the machine for your site. The Garbage Doctor works with chutes, bins, carousels and compactors from all manufacturers, including Elephants Foot, WasteTech, JJ Richards, Wanless, James Hardie and JD MacDonald.
Not sure which model you need? Send us photos or a plan of the building, and we'll recommend the one that suits your building.
Rented or bought
Our fully inclusive rental covers the equipment itself, all consumables, servicing and maintenance. Bought outright, the Ozone HD has a 48-month on-site warranty.
Serviced on site
Our technicians are licensed electricians. They service the machine, with an electrical test and tag at every service, throughout Sydney, Melbourne, Brisbane, the Gold Coast, the Sunshine Coast, Airlie Beach, Tweed and Auckland. Call 1300-ODOURS (1300 636 877).
Specifications
| Specification | Garbage Doctor Ozone HD |
|---|---|
| Size (H × W × D) | 570 × 560 × 235 mm |
| Weight | 26.5 kg |
| Construction | 304 stainless steel, precision laser cut |
| Power | 68 to 152 W |
| Voltage | 230 V, 50 Hz |
| Ozone | Si-Zone UV ozone generator, adjustable |
| Germicidal UV-C | Yes, in the same unit as the UV ozone |
| Nitric acid | None, guaranteed (nitric acid corrodes steel chutes) |
| Filter | Activated carbon |
| Outlets | Two high-flow outlets, for 38 mm food-grade silicone hose or PVC conduit |
| Fan | Two airflow settings, low and high |
| Distance to bins | Up to about 30 m |
| Operation | Continuous, 24 hours a day |
| Sound | About 57 dB at 2 m |
| Options | Ozone monitoring, a programmable timer, remote entry access |
| Warranty | For the whole rental when rented; 48 months on site when bought |
| Uses | Garbage rooms, chutes and compactors, grease traps, loading docks, and any commercial odour control that runs 24/7 |
Questions about the Ozone HD
Do we need the HD?
We may recommend the HD for the largest sites: the very tallest chutes, large or spread-out bin rooms, long runs of conduit, or several areas from one machine. In a small or medium bin room, the Ozone is the better choice, since the HD's stronger fan makes the ozone level harder to set just right. We'll recommend the one that suits your building.
Can one machine treat more than one area?
Yes, where they're within the machine's reach. The HD carries ozone through long runs of conduit, so areas that would normally need two machines can often share one.
Will the bin room smell of ozone?
The bin room shouldn't. We set the output so the odour is neutralised and a neutral smell, or a very slight smell of ozone, is left, and our technicians measure the ozone level on site with an ozone monitor.
