Garbage Doctor® Ozone
Garbage Room and Chute - Germicidal and Odour Control
Made here in Australia for our warm climate, the Garbage Doctor® Ozone is a purpose-built air purification system designed to provide germicidal and odour control in garbage rooms (using Ozone, Germicidal UV-C & Carbon filtration), while simultaneously releasing a Ozone into the chute, to provide further deodorisation before odours enter the buildings common areas.
Because garbage chutes have an up-draft, the air within the bin room must first be treated in a targeted way – as close as possible to the originating source of the odours, which is typically the rubbish bins, garbage compactor or carousel unit.
The Garbage Doctor® Ozone is an economical, effective and proven solution for neutralising odours and improving hygiene in Australias hotels, apartments and commercial waste systems.

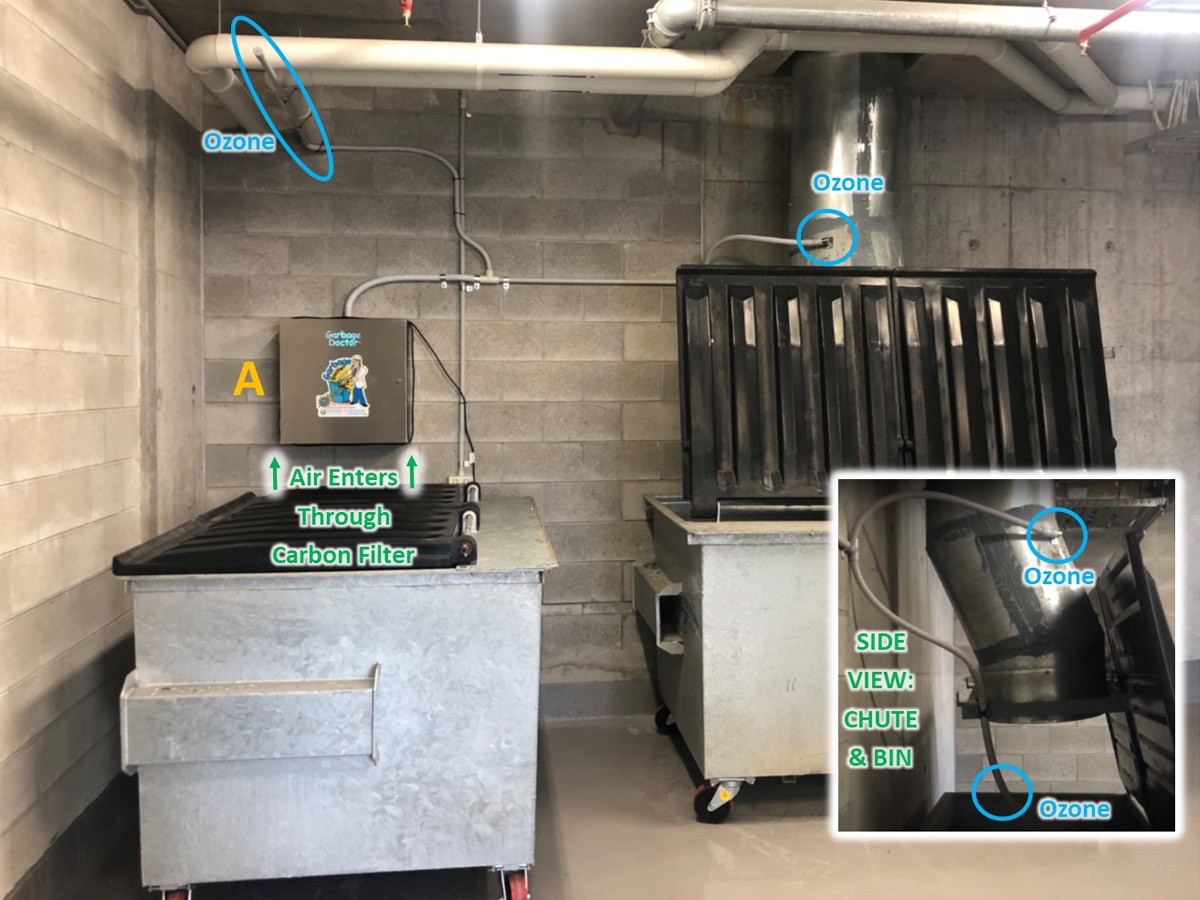

Installation Example - How Does it Work?

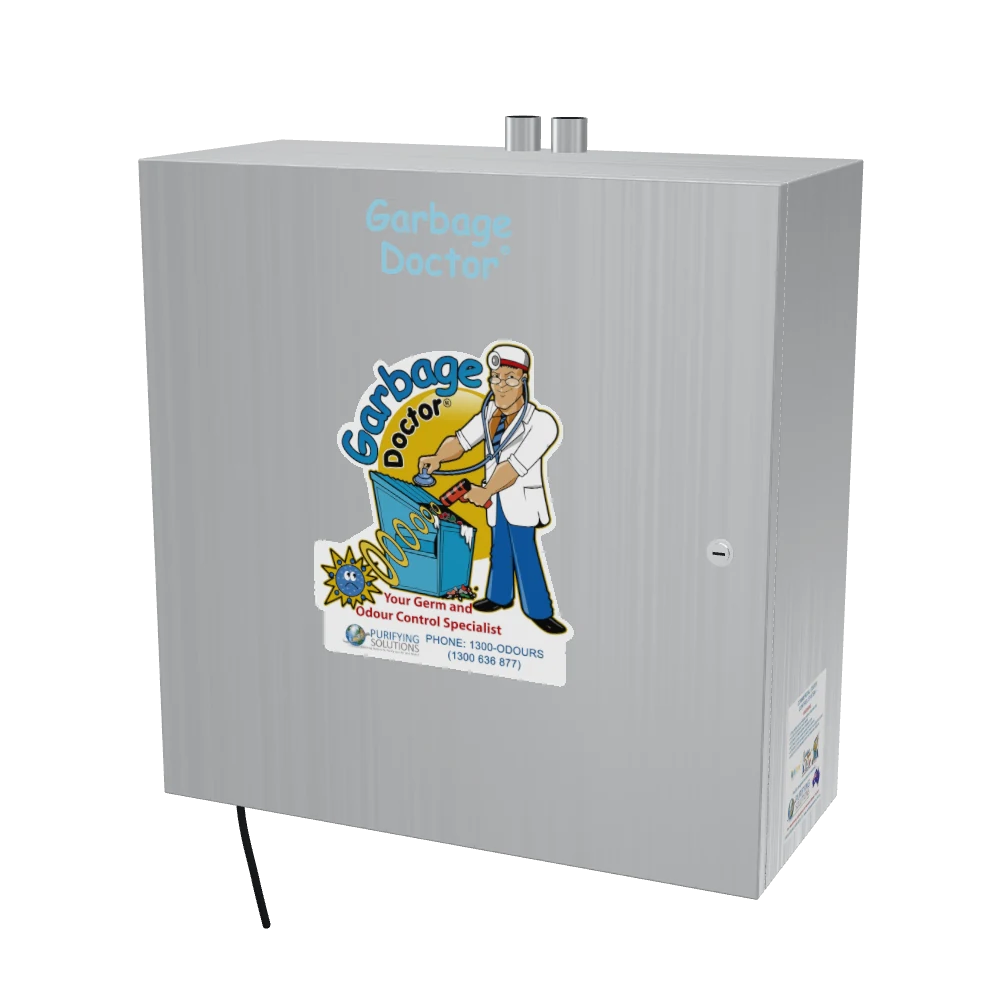

The Garbage Doctor® Ozone Generator (‘A’) is made from stainless steel and is typically wall mounted at the base of the garbage chute in the bin room. Many different configurations are possible, and our team will tailor the installation for your specific site.
Ozone (Targeted Germicidal and Odour Control)
In the above example, Ozone is dispersed from the cabinet via a grey PVC pipe, this pipe goes above the bin on the left-hand side (having holes to disperse Ozone above the stored bin). Viewing the ‘Side View’ image in bottom the right-hand-side, you can see the pipework is also dispersing Ozone down into the bin beneath the chute (via a flexible silicone hose), and into the garbage chute itself. Providing targeted Ozone at the source of the odours (in this case, the rubbish bins) provides a best-practice of deodorisation before the air is sucked up the chute. The amount of Ozone being created is completely adjustable, and is tailored to each individual site.
Ozone is a powerful deodorising and germicidal control agent, which is proven effective against an enormous range of microorganisms (bacteria, viruses, etc). Ozone also physically destroys odours by a processed called oxidation (without masking). Our customers generally notice a difference within about 15 minutes of installation. Click here for more information on Ozone as an application for treating garbage systems.
The above image shows a simple chute/bin room configuration. The Garbage Doctor® Ozone generator has the flexibility to be installed in a wide range of applications, including; bin rooms only (no chute), garbage compactors, grease traps/grease arrestors, loading docks etc.
Garbage Doctor® Ozone - Other Installation Examples
Installation configurations will vary from site-to-site. The Garbage Doctor® equipment is well suited and has been installed on a large range of chutes, loading docks and waste management systems in hotels and apartments buildings, including: rubbish bins, carousel and compactors, from manufacturers such as: Elephants Foot, WasteTech, JJ Richards, Wanless, James Hardie, JD MacDonald etc.
The Garbage Doctor® Ozone generator can be purchased outright or is available on a fully inclusive rental throughout Sydney, Melbourne, Brisbane, Gold Coast, Sunshine Coast, Airlie Beach, Tweed and Auckland (New Zealand).
Garbage Doctor® Ozone Generator - Specifications
|Number of Separate Internal Air Purifiers||1|
|Number of Air Purification Technologies||2 (VUV Ozone and/or UVC Germicidal) + Carbon Filter|
|Rated Operation Time||24 Hours continuous|
|UV Ozone Generator |
(With adjustable control)
(In same purifier as the UV Ozone)
|Nitric Acid Free?|
(Nitric acid is corrosive to steel garbage chutes)
|Operating Noise||Near silent|
|Pre Filtration Method||Activated Carbon Particle Filter|
|Airflow Method||Dual High Flow 31mm silicone hose (food grade) or PVC piping.|
|Construction Material||304 Grade Stainless Steel (Precision Laser Cut)|
|Dimensions (mm)||570 (H) x 560 (W) x 220 (D)|
|Power Consumption||35W – 140W|
|Operating Voltage||230V 50HZ|
(All our equipment includes an on-site warranty)
|48 Months when purchased|
Indefinite period when leased
|Ozone Monitoring System||Optional|
|Remote Entry Access||Optional|
|Applications||Garbage Odour Control (Garbage Rooms, Garbage Chutes, Garbage Compactors), Grease Trap Odour Control, Loading Dock Odour Control, other Commercial Odour Control Requiring Robust Equipment for 24/7 Operation.|
The Garbage Doctor® products are proudly designed and built in Australia.
