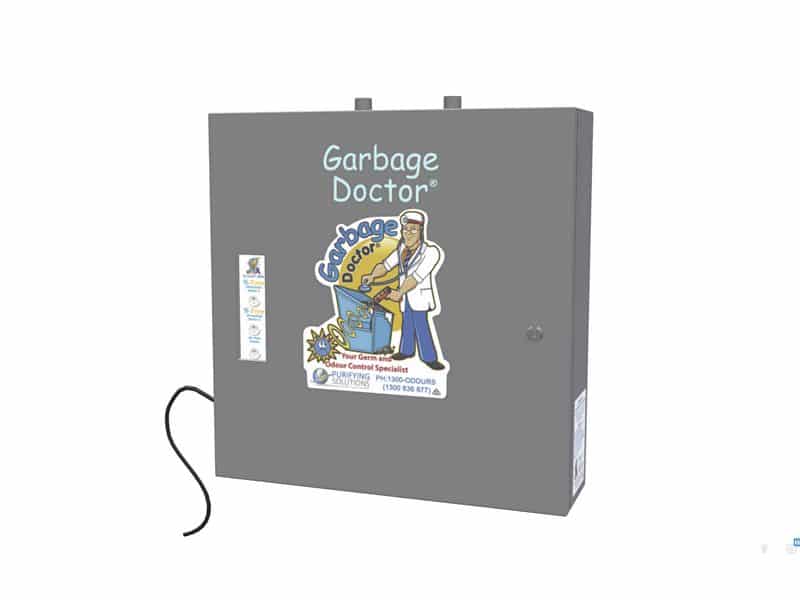

Garbage Doctor® 3000
Odour Removal for Garbage Chute and Bin Rooms
Made here in Australia, the Garbage Doctor® 3000 is a purpose-built air purifier designed to remove odours and provide germicidal control (using Ozone, Germicidal UV-C & Carbon filtration), in garbage room and garbage chutes of high-rise and apartment buildings.
This model is perfectly suited for small-medium sized buildings, where an economical and well-proven solutions is required.
The Garbage Doctor® 3000 is also suited towards odour removal in many other commercial applications where a robust Ozone generator rated for 24/7/365 operation is needed, such as; loading docks, grease traps/grease arrestors, and waste water treatment rooms, to name a few.

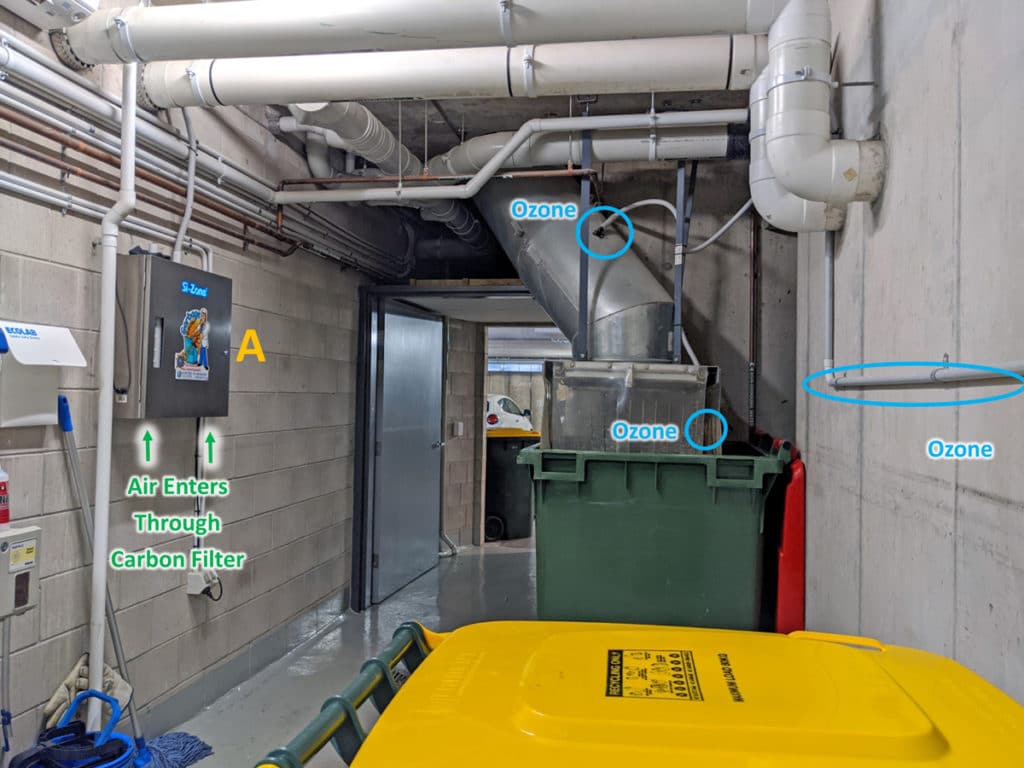

Installation Example - How Does it Work?

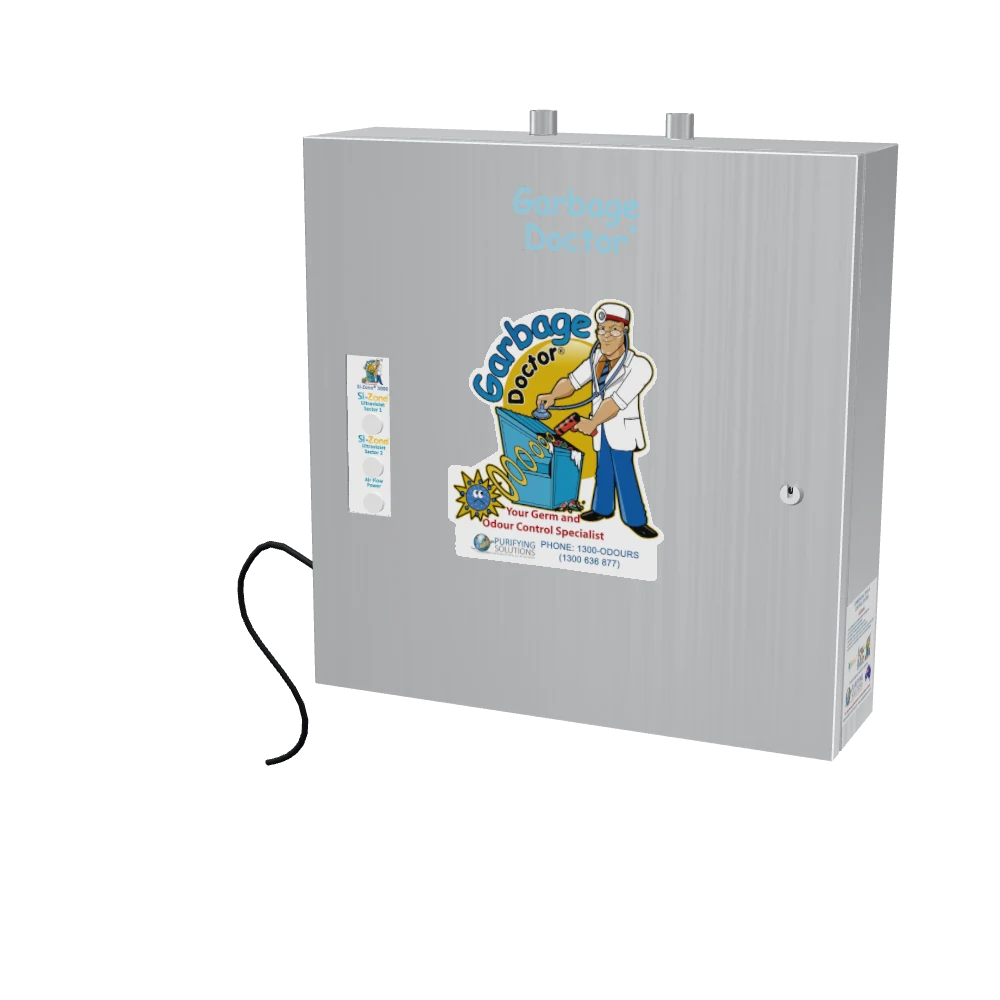

The Garbage Doctor® 3000 (‘A’) is made from stainless steel and is mounted on the wall of the bin room. This cabinet houses the Ozone/Germicidal UV-C/Carbon filtration equipment.
Ozone (Targeted Germicidal and Odour Control)
In the above example, Ozone is dispersed from the cabinet via a grey PVC pipe which goes into the garbage chute, into the wet-waste bin beneath the chute, and also above the recycling bins on the right-hand side of the image. The PVC pipework above the recycling bin has small holes in it, to disperse low levels of Ozone above this area. Providing targeted Ozone at the source of the odours (in this case, the rubbish bins) provides a best-practice of odour removal before the foul air travels up the chute. The amount of Ozone being produced by the equipment is completely adjustable, and is tailored to each individual site.
Ozone is a powerful deodorising and germicidal control agent, which is proven effective against an enormous range of microorganisms (bacteria, viruses, etc). Ozone also physically destroys odours by a processed called oxidation (without masking). Our customers generally notice a difference within about 15 minutes of installation. Click here for more information on Ozone as an application for treating garbage systems.

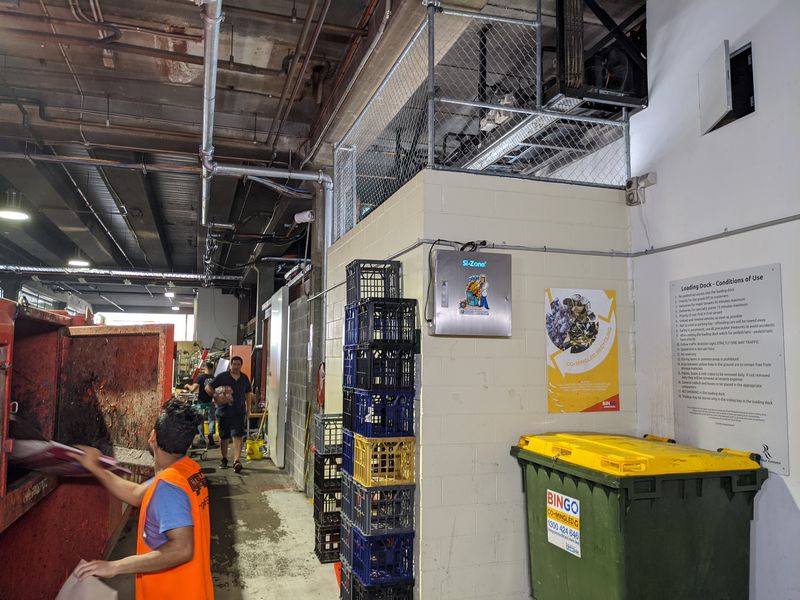

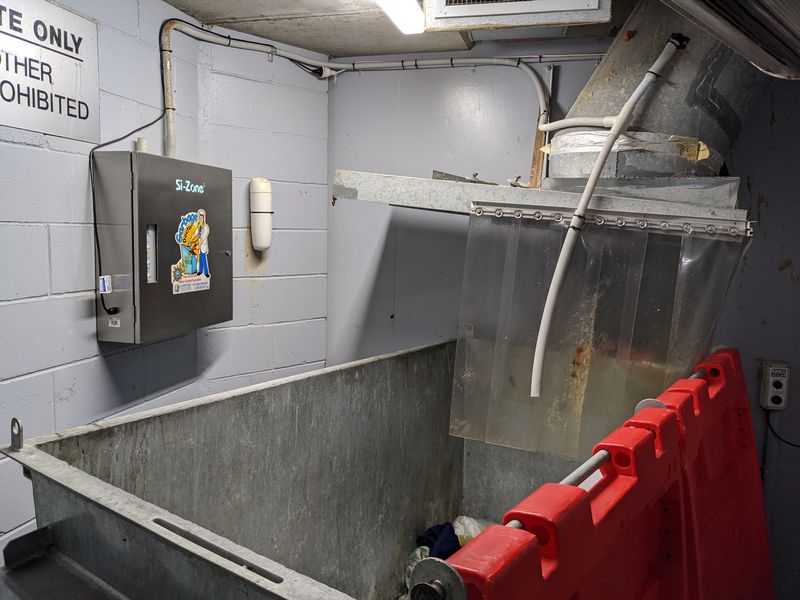

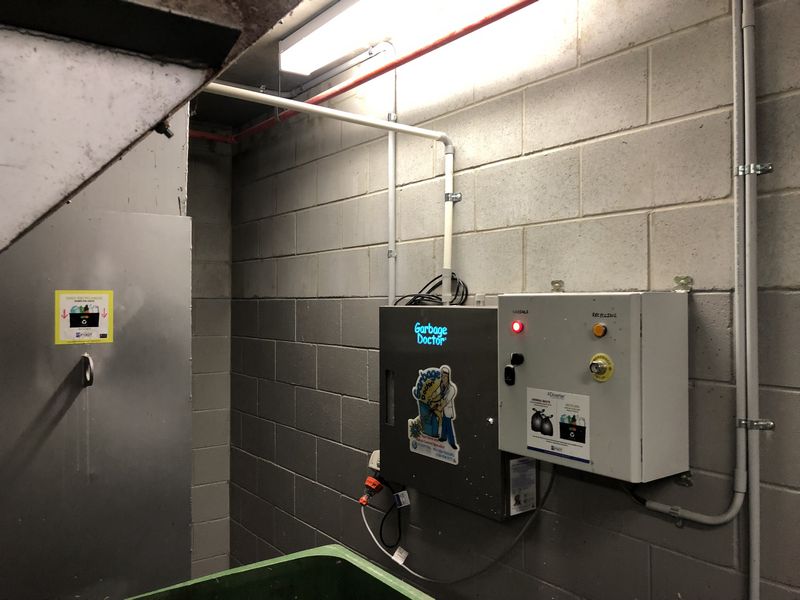

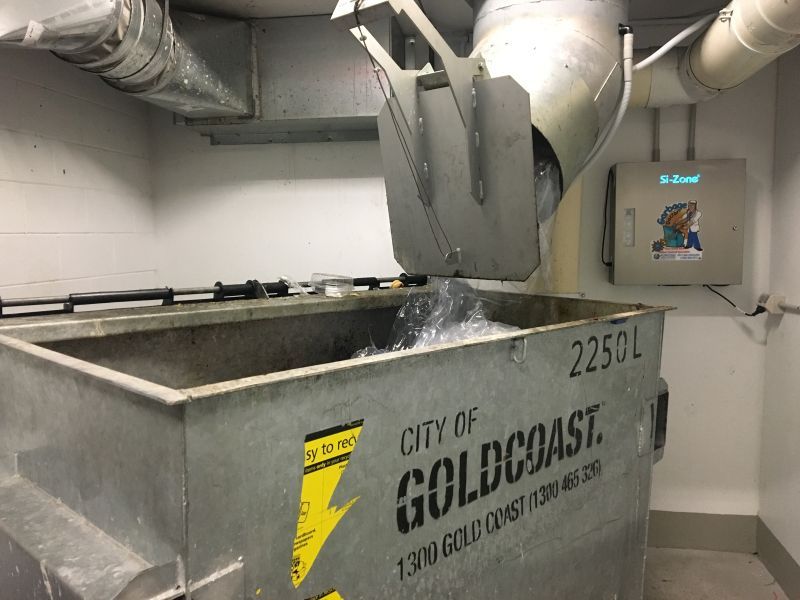

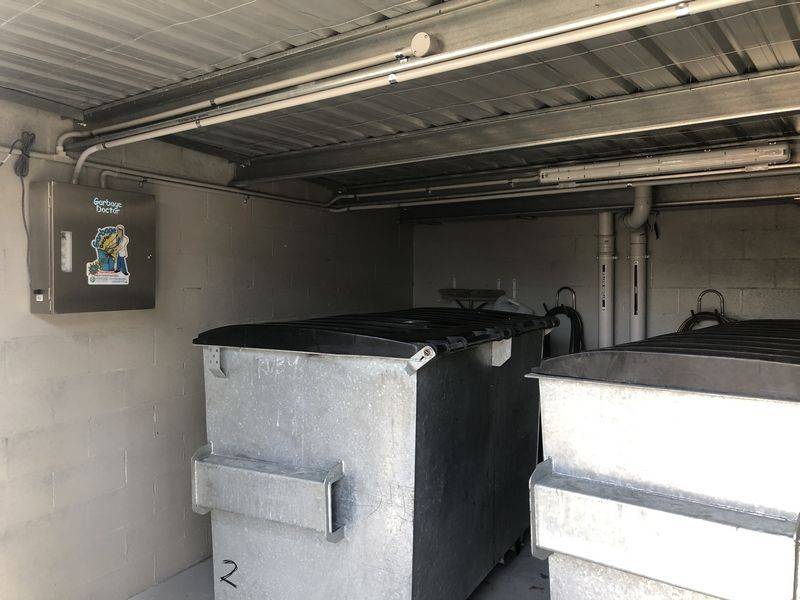

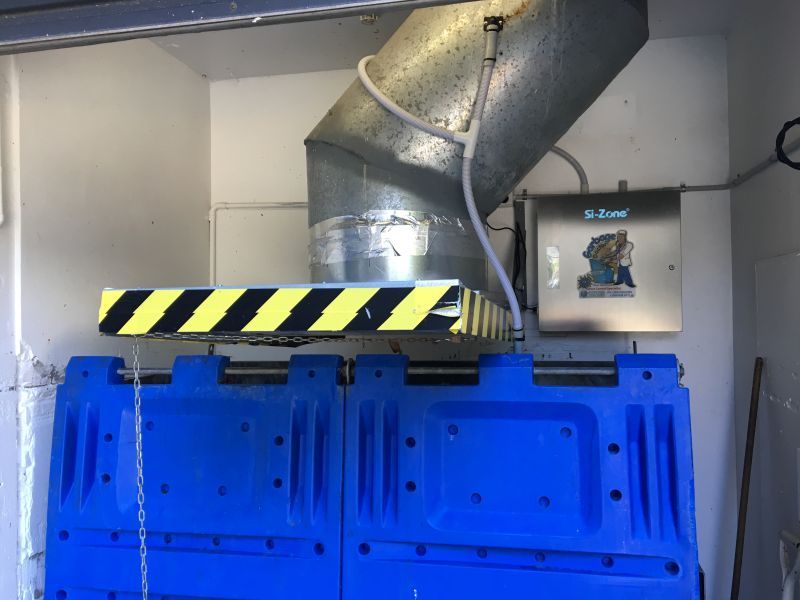

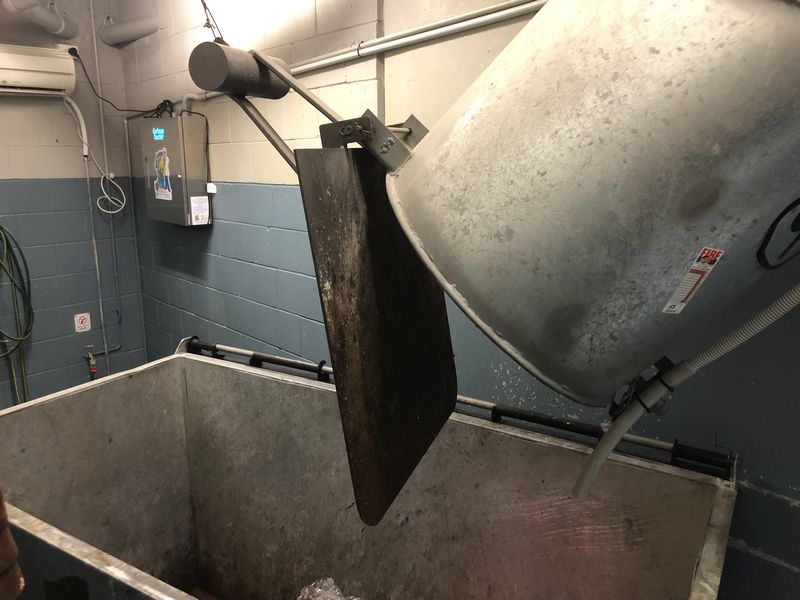

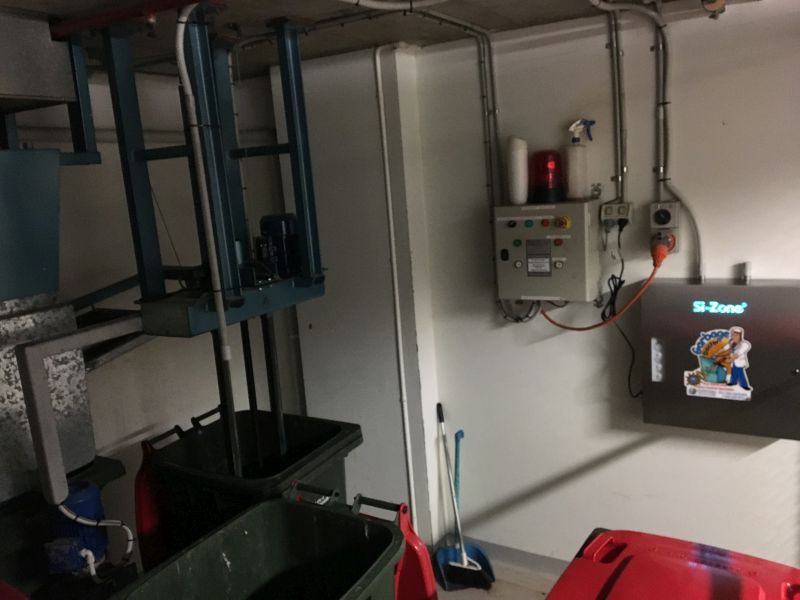

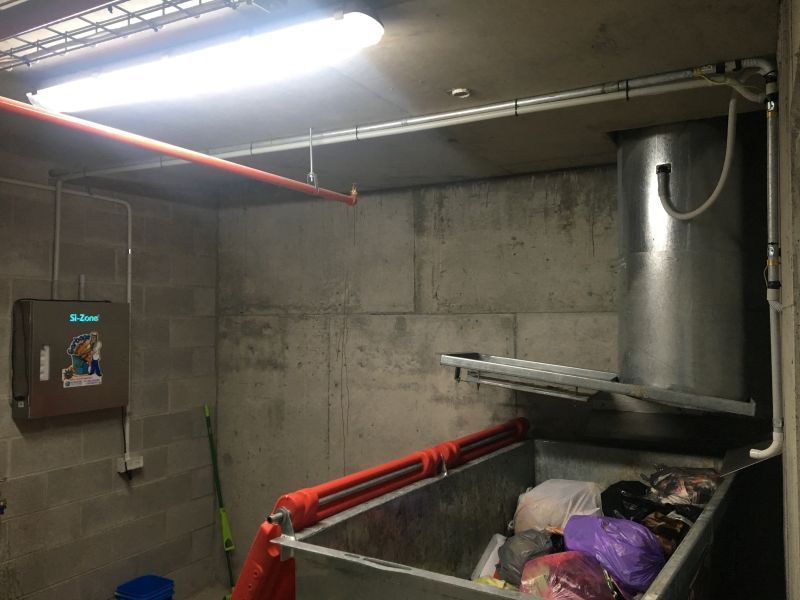

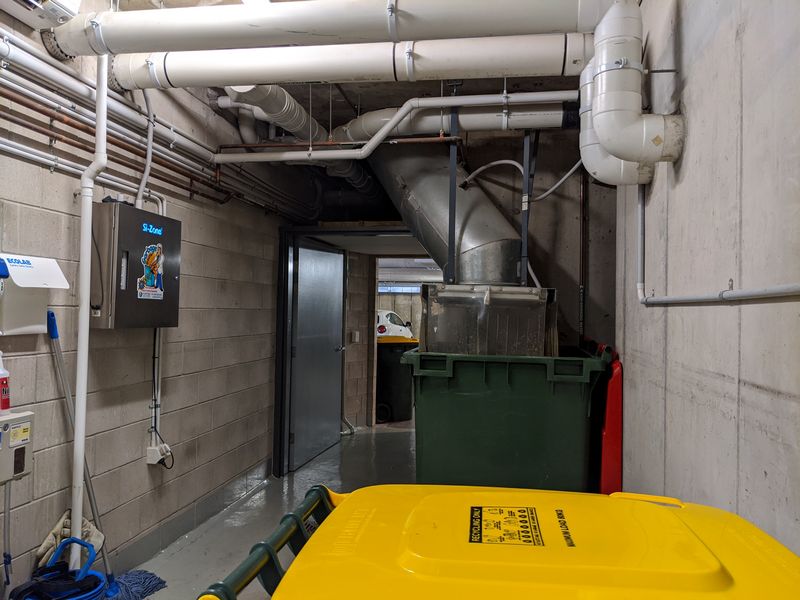

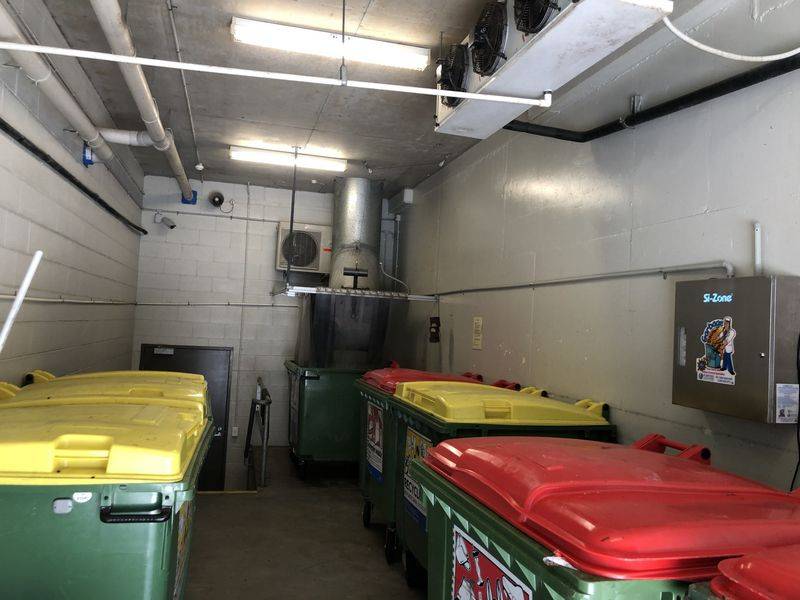

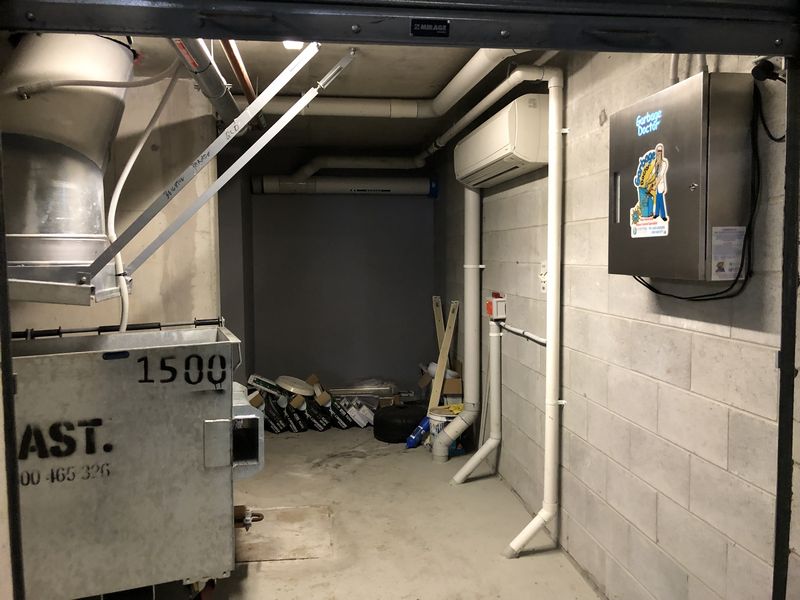

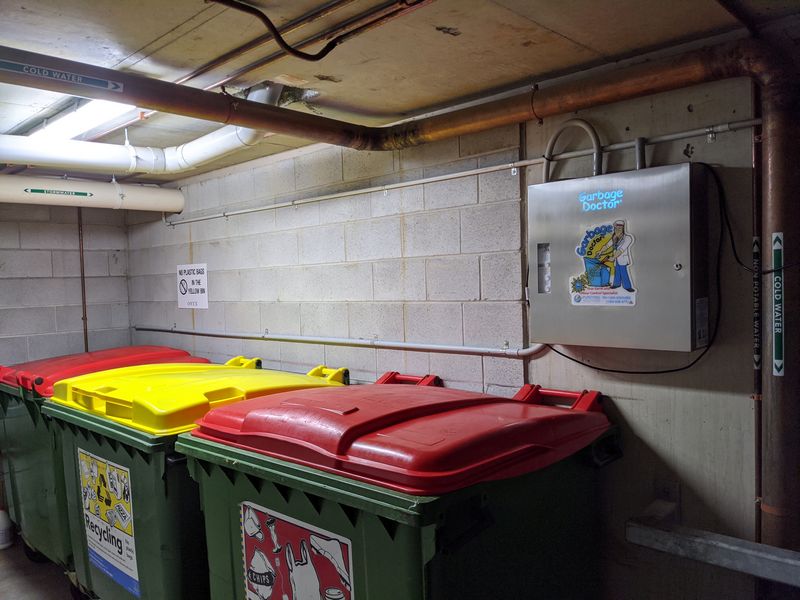

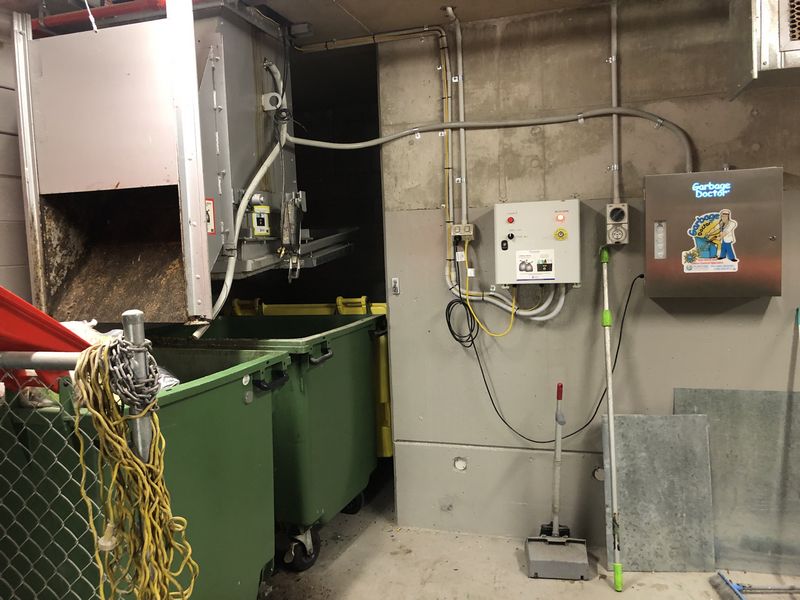

Garbage Doctor® 3000 - Additional Installation Examples
Installation configurations will vary from site-to-site. The Garbage Doctor® equipment is well suited and has been installed for odour removal on a large range of chutes, loading docks, grease traps and waste management systems, including: rubbish bins, carousel and compactors, from manufacturers such as: Elephants Foot, WasteTech, JJ Richards, Wanless, James Hardie, JD MacDonald etc.
The Garbage Doctor® 3000 is available on a fully inclusive rental throughout Sydney, Melbourne, Brisbane, Gold Coast, Sunshine Coast, Airlie Beach & Tweed.
Garbage Doctor® 3000 - Specifications
|Number of Separate Internal Air Purifiers||1|
|Number of Air Purification Technologies||2 (VUV Ozone and/or UVC Germicidal) + Carbon Filter|
|Rated Operation Time||24 Hours continuous|
|UV Ozone Generator |
(With adjustable control)
(In same purifier as the UV Ozone)
|Photo Catalytic Oxidation (PCO)||No|
|Nitric Acid Free?|
(Nitric acid is corrosive to steel garbage chutes)
|Operating Noise||Near silent|
|Pre Filtration Method||Activated Carbon Particle Filter|
|Airflow Method||High Flow 31mm silicone hose (food grade) or PVC piping.|
|Construction Material||304 Grade Stainless Steel (Precision Laser Cut)|
|Dimensions (mm)||570 (H) x 560 (W) x 150 (D)|
|Power Consumption||70W – 110W|
|Operating Voltage||230V 50HZ|
(All our equipment includes an on-site warranty)
|48 Months when purchased|
Indefinite period when leased
|Ozone Monitoring System||Optional|
|Remote Entry Access||Optional|
|Applications||Garbage Odour Control (Garbage Rooms, Garbage Chutes, Garbage Compactors), Grease Trap Odour Control, Loading Dock Odour Control, other Commercial Odour Control Requiring Robust Equipment for 24/7 Operation.|
The Garbage Doctor® products are proudly designed and built in Australia.
