Garbage Doctor® Duo
Ozone in the bin room and a fragrance in the chute, from one system. Built in Australia for our warm climate, and our customers' favourite.
See the difference in your own building first, with a free 2-week trial
In our regular service areas.
Neutralise the odour, and scent the chute
The Si-Zone® UV generator targets ozone at the bins, the compactor or the carousel, where the odour starts, and destroys the odour down before the air is drawn up the chute. The scent tank simultaneously releases a scented vapour into the chute. A little of the scent typically escapes around the chute door on each level, so residents and guests notice a clean, pleasant smell whenever they use the waste system.
How the Garbage Doctor Duo works: UV ozone neutralises the odour at the bins, and the Duo's scent tank sends a fragrance up the garbage chute.
- Ozone, then fragranceThe odour is neutralised at the bins, and the fragrance is the finish in the chute.
- Runs 24/7/365The UV ozone system is rated for continuous operation.
- 304 stainless steelThe main unit is built for wet, dirty bin rooms, with a lockable cabinet.
- Fully adjustableThe ozone output and the fragrance are both set for your site.
- Results you notice fastCustomers generally notice a difference within about 15 minutes of installation.
- Made in AustraliaDesigned, built, installed and serviced by our team.
See how the Duo is installed
This example shows the Garbage Doctor® Duo installed in a bin room and chute, in a garbage bin room, in a loading dock and at a grease trap. Tap a number to zoom in on each part of the process.
Choose an installation example
Tap a number to zoom in on each part, or press Next to be taken round in order.
Stainless steel, mounted on the bin room wall. Inside, UV lamps turn a small amount of the air's oxygen into ozone. The main unit also holds the scenting controls, which are connected to the scent tank.
Air enters through a carbon filter along the bottom of the machine.
Grey PVC conduit runs along the wall where the bins are kept, with small holes to release the ozone just above them. Targeting the ozone at the source neutralises the odour before the odour is drawn up the chute.
Flexible silicone hose carries the ozone down into the bin under the chute, where the odour starts.
Mounted on the wall near the chute, and connected to the main unit by a small blue hose. The tank holds your choice of fragrance.
The scent tank sends a scented vapour through a white pipe into the chute. The vapour rises through the chute, and a little escapes around the chute door on each level, so the building's waste system feels clean and pleasant to use.
Tap a number to zoom in on each part, or press Next to be taken round in order.
Stainless steel, mounted on the garbage room wall. Inside, UV lamps turn a small amount of the air's oxygen into ozone. The main unit also holds the scenting controls, which are connected to the scent tank.
Air enters through a carbon filter along the bottom of the machine.
Grey PVC conduit runs along the wall where the bins are kept, with small holes to release the ozone just above the bins. Targeting the ozone at the source neutralises the odour where the odour starts.
Mounted on the wall and connected to the main unit by a small blue air hose. The 14-litre tank holds your choice of fragrance.
The scent tank sends a scented vapour out of a short pipe on top, into the wider area of the room outside the targeted ozone.
Tap a number to zoom in on each part, or press Next to be taken round in order.
Stainless steel, mounted on the wall by the compactor. Inside, UV lamps turn a small amount of the air's oxygen into ozone. The main unit also holds the scenting controls, which are connected to the scent tank.
Grey PVC conduit runs along the wall above the compactor, with small holes to release the ozone just above the compactor. Targeting the ozone at the source neutralises the odour where the odour starts.
Flexible silicone hose carries the ozone down into the compactor's hopper, where the garbage goes in.
Mounted on the wall at the other end of the dock, by the grease trap, and connected to the main unit by a small blue hose. The tank holds your choice of fragrance.
The scent tank sends a scented vapour out of a short pipe on top, and the vapour spreads around the grease trap and through the dock.
Tap a number to zoom in on each part, or press Next to be taken round in order.
Stainless steel, mounted on the wall as close as possible to the grease trap. Inside, UV lamps turn a small amount of the air's oxygen into ozone. The main unit also holds the scenting controls, which are connected to the scent tank.
Grey PVC conduit runs along the wall above the grease trap, with small holes to release the ozone just above the trap, the same way as over garbage bins. Targeting the ozone at the source neutralises the grease odour before the odour can spread.
A grease trap, or grease arrestor, holds back the fats, oils and grease from a kitchen's waste water: the grease floats on the water and the solids settle on the bottom. The grease trap's strong, pungent smell escapes around the lids, where the ozone above the trap meets the smell.
Mounted on the wall by the door, away from the trap, and connected to the main unit by a small blue hose. The tank holds your choice of fragrance.
The scent tank sends a scented vapour out of a short pipe on top, into the wider area outside the targeted ozone, which helps a great deal where the odour is a problem.
How the Duo works
- Air enters the machine through a carbon filter.
- UV lamps inside the machine turn a little of the oxygen into ozone.
- PVC conduit carries the ozone to the bins, where the ozone breaks down the odour and turns back into oxygen.
- A small pipe links the machine to the scent tank, which sends a fragrance up the chute (optional).
- Air enters the machine through a carbon filter.
- UV lamps inside the machine turn a little of the oxygen into ozone.
- PVC conduit carries the ozone to the bins, where the ozone breaks down the odour and turns back into oxygen.
- A small pipe links the machine to the scent tank, which sends a fragrance up the chute (optional).

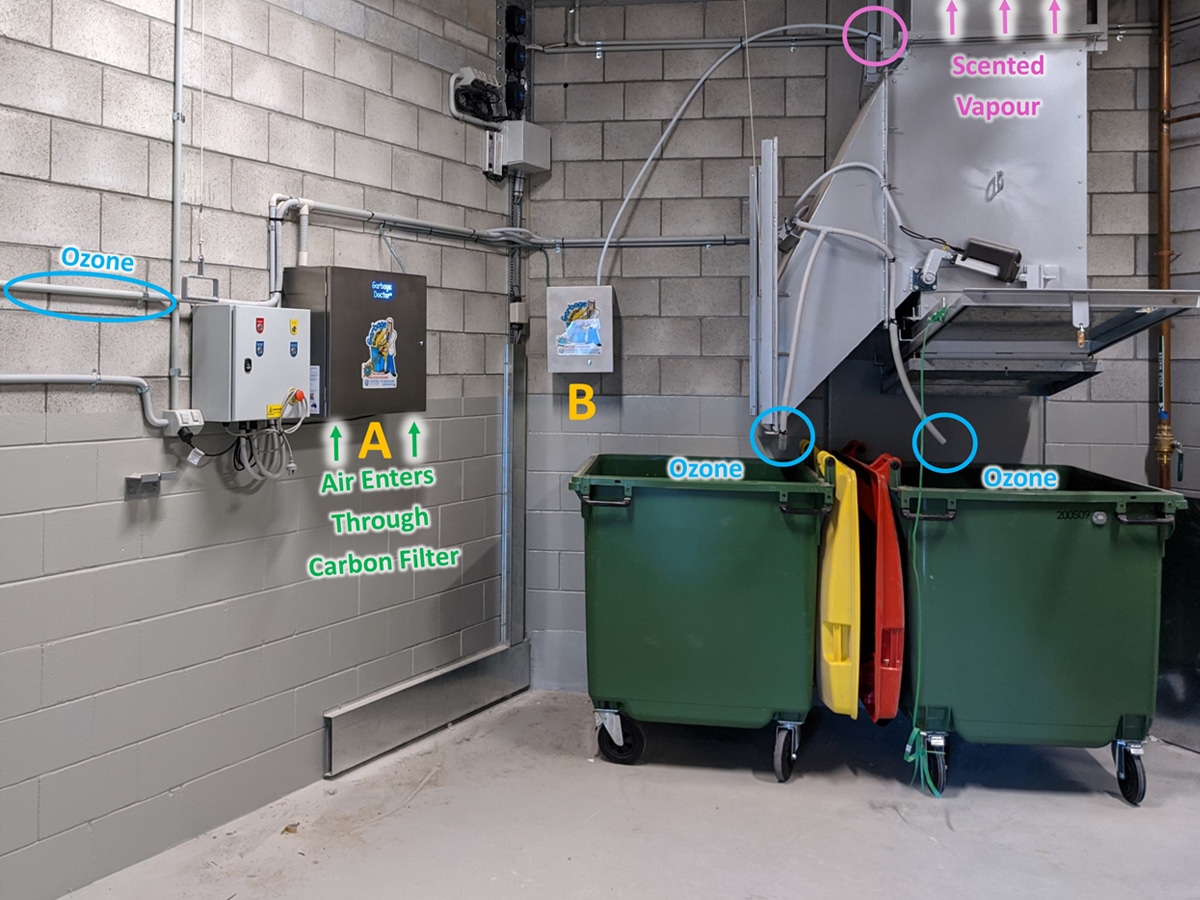

An installation, and how the system works
The Duo's main unit (A) is stainless steel, mounted on the bin room wall. The main unit holds the ozone equipment and the scenting controls, which are connected to the scent tank (B).
- The ozone. Grey PVC conduit runs along the wall where the bins are kept, with small holes to release the ozone just above them, and flexible hose carries the ozone down into the recycling and general waste bins under the chute. Targeting the ozone at the source neutralises the odour before the odour is drawn up the chute. The ozone output is fully adjustable, to suit each site.
- The fragrance. The scent tank, mounted on the wall, sends a scented vapour through a white pipe into the chute. The vapour rises through the chute, and a little escapes around the chute door on each level, so the building's waste system feels clean and pleasant to use.
Every site is a little different. The Duo has been installed with chutes, bins, carousels and compactors from all manufacturers, including Elephants Foot, WasteTech, JJ Richards, Wanless, James Hardie and JD MacDonald.
We'll plan the installation for your building
You are welcome to send us photos or a video of your bin room and chute, or we can meet you on site, whichever suits you best. We'll recommend the right model and send you a quote, and our technicians install and set up the machine for your site.
Tell us which fragrance you'd like, or we'll recommend one for your building.
On a fully inclusive rental
The Duo is available for rent only, due to the higher servicing requirements of scenting. Our fully inclusive rental covers the equipment itself, all consumables (including the fragrance refills), servicing and maintenance.
Serviced on site
Our technicians are licensed electricians. They service the machine, with an electrical test and tag at every service, throughout Sydney, Melbourne, Brisbane, the Gold Coast, the Sunshine Coast, Airlie Beach, Tweed and Auckland. Call 1300-ODOURS (1300 636 877).
Specifications
| Specification | Main unit | Scent tank |
|---|---|---|
| Size (H × W × D) | 570 × 560 × 220 mm | 420 × 320 × 250 mm |
| Weight | 26 kg | 6 kg |
| Construction | 304 stainless steel, precision laser cut | Aluminium |
| Power | 35 to 140 W | Not applicable |
| Voltage | 230 V, 50 Hz | Not applicable |
| What each part does | Si-Zone UV ozone, adjustable, with germicidal UV-C in the same unit, and an activated carbon filter with a secondary particle filter | A scented vapour, from a high-capacity tank |
| Nitric acid | None, guaranteed (nitric acid corrodes steel chutes) | Not applicable |
| Outlets | Two high-flow outlets, for 31 mm food-grade silicone hose or 25 mm PVC conduit | 16 mm hose |
| Operation | Continuous, 24 hours a day | As per timer for site requirements |
| Sound | Near silent | Near silent |
| Options | Ozone monitoring, a programmable timer, remote entry access | Not applicable |
| Rental | On site, for the whole rental | Not applicable |
| Uses | Garbage rooms, chutes and compactors, grease traps, loading docks, and any commercial odour control that runs 24/7 | Not applicable |
Questions about the Duo
Which fragrances can we choose?
Our popular fragrances include Lemon Myrtle & Orange, Aloe Vera & Cucumber, Lychee Fusion, Riverstone, Forest Nights and Coconut & Vanilla. We're happy to recommend one that suits your building.
Can we buy the Duo?
The Duo is available on a fully inclusive rental only, due to the higher servicing requirements of scenting. If you'd rather buy, the Ozone can be bought outright, and Garbage Doctor Scenting added to the Ozone on a rental.
Will the fragrance hide the odour?
The fragrance doesn't need to. The ozone neutralises the odour first, so the fragrance is all that's left to notice.
